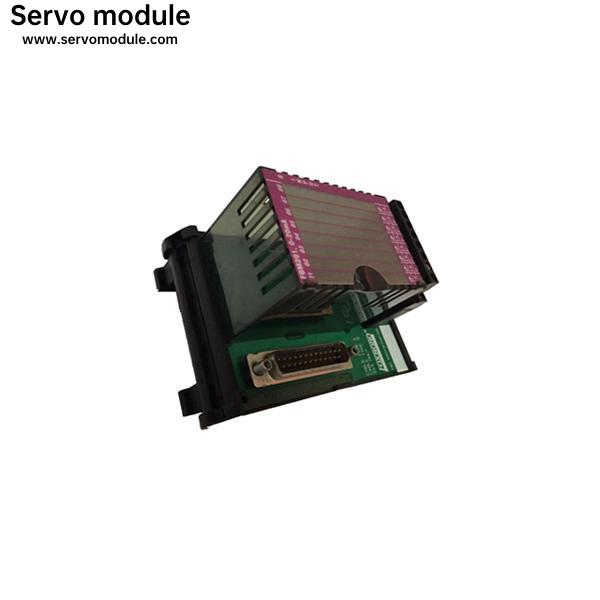

Invensys FOXBORO FBM217P0914TR Group Isolated 32 Ouput Voltage Monitor

Invensys FBM217P0914TR Overview

The FBM217P0914TRDiscrete Input Interface Module provides 32 input channels, each accepting a 2-wire input from a dc voltage source. Associated termination assemblies (TAs) provide for discrete inputs of under 60 V ac, 120 V ac/125 V dc or 240 V ac. TheFBM217P0914TRmodule performs signal conversion required to interface the electrical input signals from the field sensors to the Module Fieldbus.

FOXBORO FBM217P0914TR Details

Manufacturer : Foxboro

Product No. : FBM217

Product type : Discrete Input Interface Module

Input : 32 group isolated channels

Current : 2.2 mA (typical) at 30 V dc Input

Communication : Communicates with its associated FCM or FCP via the redundant 2 Mbps module Fieldbus

Input voltage range (redundant) : 24 V dc +5%, -10%

Power consumption : 3 W (maximum) at 24 V dc

Dimensions (HxWxD), approx : 10.2cm / 11.4cm( including mounting lugs) x 4.5cm x 10.4cm

Foxboro Ordering Information

FBM217 Discrete Input Interface Module

FBM218 HART Communication Redundant Output Interface Module

FBM237, 0 to 20 mA Output Interface Module (Redundant Ready)

FBM241/b/c/d Discrete I/O Interface Modules

FBM242, Externally Sourced, Discrete Output Interface Module

Discrete Inputs

Thirtytwo Discrete Inputs connect to thirtytwo DeltaV DI CHARMs – FBM model number FBM217/P0916PW

Twenty-four Discrete Inputs connect to twentyfour DeltaV DI CHARMs – FBM model numbers FBM219/P0917LE, FBM219/P0917LH

Sixteen Discrete Inputs connect to sixteen DeltaV DI CHARMs – FBM model numbers FBM207b/P0916JS, FBM207c/P0916MF

Eight Discrete Inputs connect to eight DeltaV DI CHARMs – FBM model numbers FBM241c/P0916AW, FBM241c/ P0916JW, FBM241c/P0916QQ, FBM241c/P0916AQ

Brand new & In stock & Best price
