Foxboro Module FBM202I/A Series In Stock

Introduction

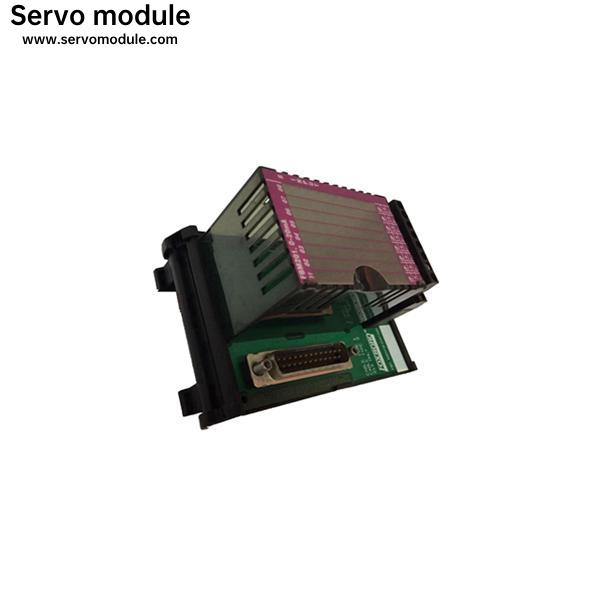

The FOXBORO FBM207B P0916JS is a voltage monitor and contact sense input module designed for industrial automation systems. It functions as a 16-channel DC voltage monitor or contact sensor, accepting inputs from DC voltage sources or pairs of contacts/solid state switches. The module performs signal conversion to interface electrical input signals from field sensors to the fieldbus.

Features

• Sixteen discrete inputs
• Accepts 2-wire input from DC voltage sources or pairs of contacts/solid state switches
• Supports discrete input signals at voltages of:
• 60 V DC
• 120 V AC/125 V DC
• 240 V AC
• Galvanically isolated input channels
• Rugged design suitable for harsh environments (Class G3)
• Executes programs for Discrete Input, Ladder Logic, Pulse Count, and Sequence of Events
• Termination Assemblies (TAs) with voltage attenuation and optical isolation
• Visual indicators with LEDs for operational status
• Easy removal/replacement without removing field device termination cabling, power, or communication cabling
• Fieldbus communication with redundant 2 Mbps module Fieldbus.

1. Input Channels: 16 (DC voltage or contact sense)
2. Input Voltage Levels: 60 V DC, 120 V AC/125 V DC, 240 V AC
3. Isolation: Galvanically isolated input channels
4. Environment: Suitable for Class G3 (harsh) environments
5. Communication:Redundant 2 Mbps module Fieldbus.
