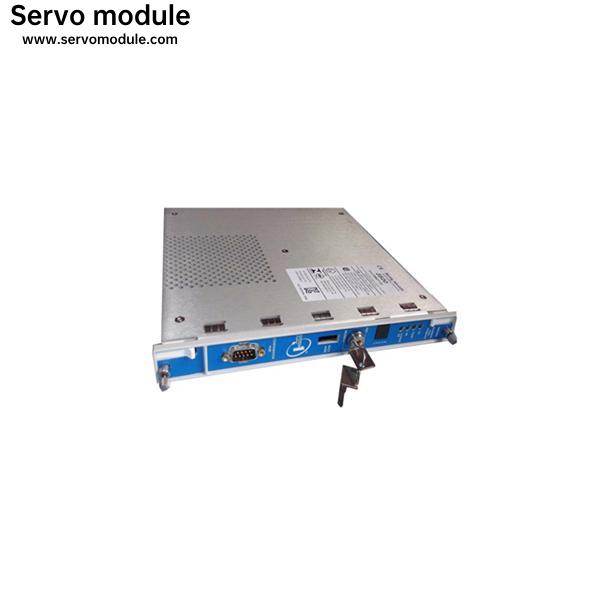

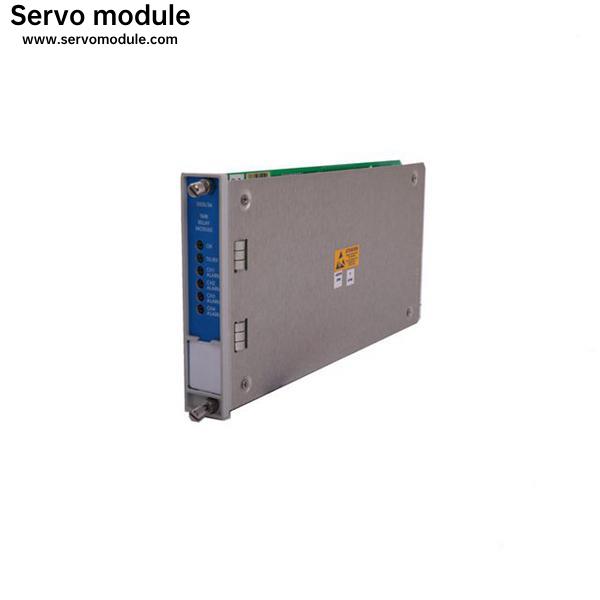

Bently Nevada 3500/32 125712-01 Relay Module for 3500 Monitor System
Description:
The 4-Channel Relay Module3500/32 125712-01 is a full-height module that provides four relay outputs. Any number of 4-Channel Relay Modules can be placed in any of the slots to the right of the Transient Data Interface Module. Each output of the 4- Channel Relay Module can be independently programmed to perform voting logic. Each relay utilized on the 4-Channel Relay Module includes Alarm Drive Logic. Programming for the Alarm Drive Logic uses AND and OR logic, and can use alarming inputs (Alert and Danger statuses), Not- OK, or individual PPLs from any monitor channel or any combination of monitor channels in the rack. You can program this Alarm Drive to meet your application needs using the 3500 Rack Configuration Software.
Specifications
Part No.
3500/32M
Ordering No.
125712-01
Inputs Power Consumption
5.8 watts typical
Outputs OK LED
Illuminated when module is functioning properly
Outputs TX/RX LED
Transmit and Receive. Flashes to indicate proper communications between this module and other modules within the rack.
Outputs CH ALARM LED
Illuminated to indicate that the Relay Channel is in an alarm state.
Relays Type
Single-pole, double-throw (SPDT) relays
Arc Suppressor
250 Vrms, installed as standard
Operation
Each relay of the four channels is switch selectable for Normally Deenergized or Normally Energized.
Main Module Dimensions
(Height x Width x
Depth)
241 mm x 24.4 mm x 242 mm
(9.50 in. x 0.96 in. x 9.52 in.)
Main Module Weight
0.7 kg (1.6 lb.)
I/O ModuleDimensions
241 mm x 24.4 mm x 99.1 mm
(9.50 in. x 0.96 in. x 3.90 in.).
I/OWeight
0.4 kg (1.0 lb.)
