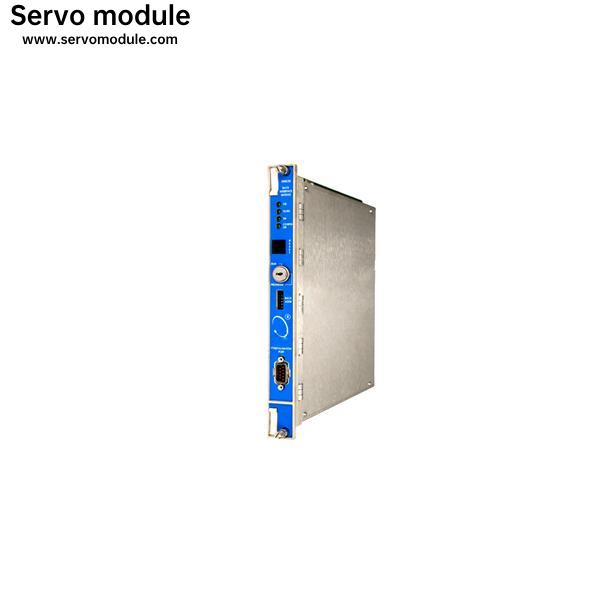

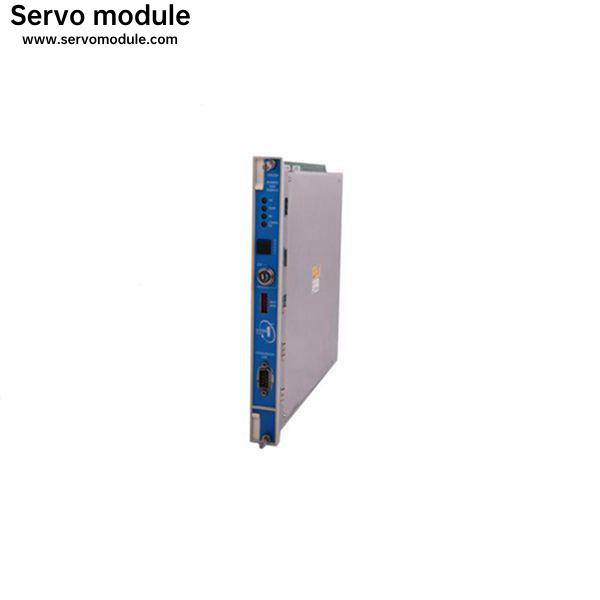

Bently Nevada 3500/20 CPU Interface Module 1 year warranty
Description:
Bently Nevada 3500/20 Rack Interface Module (RIM) is the primary interface into the 3500 rack. It supports a Bently Nevada proprietary protocol used to configure the rack and retrieve machinery information. The RIM must be located in slot 1 of the rack (next to the power supplies). The RIM provides the connections needed to support current Bently Nevada Communications Processors (Transient Data Interface External (TDIX) and Dynamic Data Interface External (DDIX)). Although the RIM does provide certain functions common to the entire rack, the RIM is not part of the critical monitoring path. The RIM's operation (or non- operation) has no effect on the proper, normal operation of the overall monitoring system.For Triple Modular Redundant (TMR) applications, the 3500 System requires a TMR version of the RIM. In addition to all the standard RIM functions, the TMR RIM also performs "monitor channel comparison." The 3500 TMR configuration implements monitor voting using the setup specified in the monitor options. Using this method, the TMR RIM continually compares the outputs from three (3) redundant monitors
Specifications
| Part No. | 3500/20 |
| Inputs Power Consumption | 4.75 watts, typical |
| I/O modules Standards | RS232/RS422 serial Internal modem communications |
| I/O Modules Trip multiply | Used to place 3500 rack in Trip Multiply. |
| Rack reset | Used to clear latched alarms and Timed OK Channel Defeat. |
| Outputs Front Panel OK LED |
Indicates when the RIM 3500/20 is operating properly. |
| Outputs TX/RX LED | Indicates when the RIM 3500/20 is communicating with other modules in the 3500 rack. |
| TM LED | Indicates when the 3500 rack is in Trip Multiply |
| CONFIG OK LED | Indicates that the 3500 rack has a valid configuration. |
