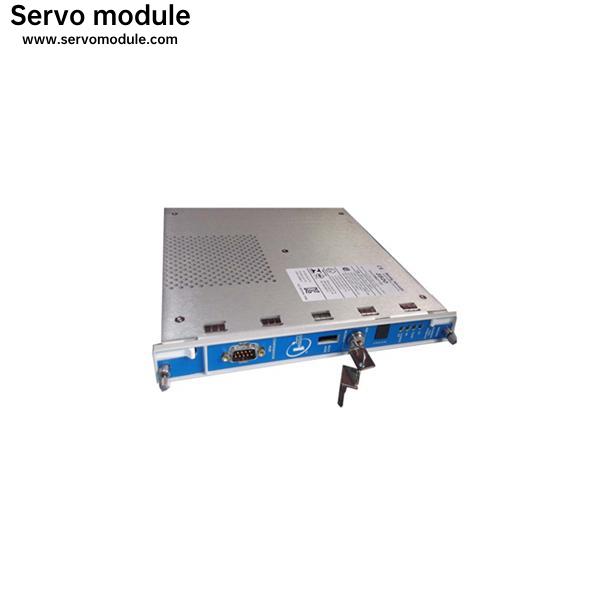

Bently Nevada 3500 3500/22M 138607-01 CPUTransient Data Interface Module
Overview
The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet. The TDI resides in the slot adjacent to the power supplies of a 3500 rack. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and transient dynamic (waveform) data and pass this data through an Ethernet link to the host software. Refer to the Compatibility section at the end of this document for more information
Specifications
| Part No. | 3500/22M |
| Order No. | 138607-01 |
| Power Consumption | 10.5 Watts |
| Front Panel | USB-B |
| 10Base-T/, 100Base-TX I/O | 10Base-T or 100Base-TX;Ethernet, autosensing |
| 100Base-FX I/O |
100Base-FX Fiber-Optic Ethernet |
