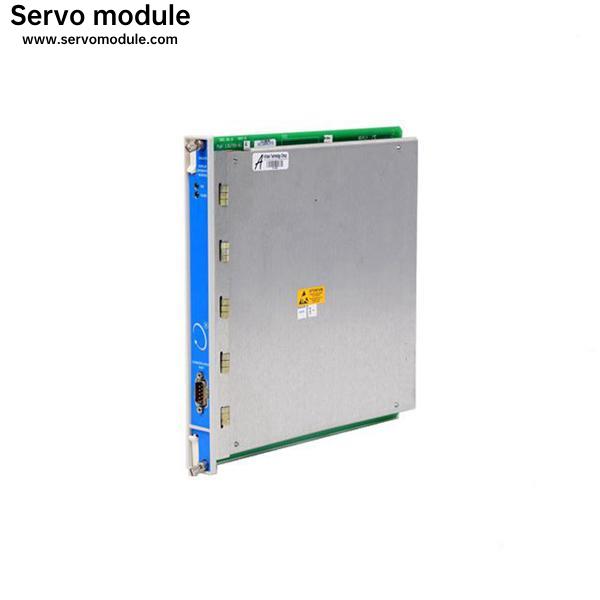

PLC Bently Nevada 3500/20 149369-01 Enhanced Keyphasor Module
Overview
The Bently NevadaEnhanced Keyphasor Module 3500/25 149369-01 is an improved 3500 system module. It offers expanded Keyphasor signal processing capabilities over the previous design while maintaining complete downward-compatibility in terms of form, fit and function with existing Keyphasor modules for use in legacy systems. The Keyphasor module, PWA 125792-01, is completely replaced by the more recent 149369-01 module.The 3500/25 Enhanced Keyphasor Module is a half-height, two-channel module used to provide Keyphasor signals to the monitor modules in a 3500 rack.
Specifications
| Part No. | 3500/20 |
| Order No. | 149369-01 |
| Power Consumption | 3.2 Watts typical. |
| Input Impedance | 21.8 k minimum. |
| Manual Threshold | Use for any input above 0.017 Hz;(1 rpm for 1 event/revolution).;User-selectable from 0 to -20; volts dc. Minimum signal;amplitude for triggering is 500;millivolts peak to peak. |
| Output Impedance | 504maximum buffered output impedance |
