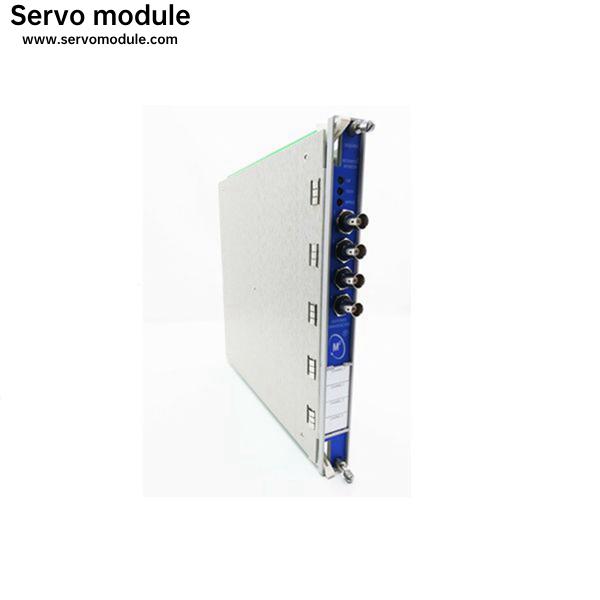

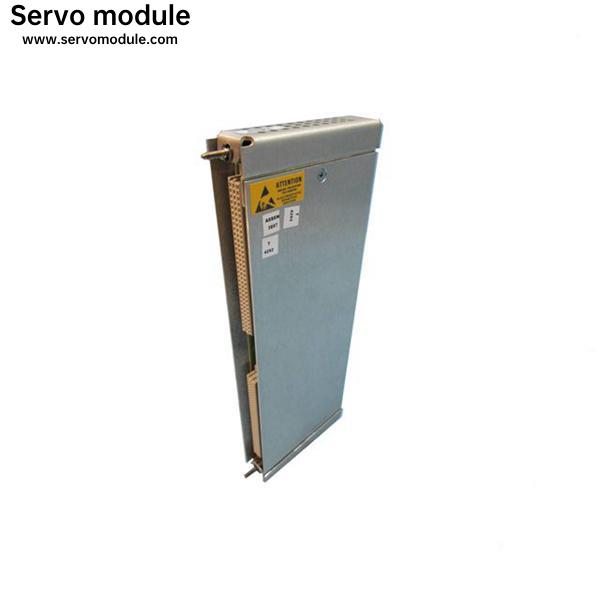

GE Bently Nevada 3500/40M Proximitor Monitor Module Ship Today
Overview
The Proximitor Monitor is a four-channel monitor that accepts input from Bently Nevada proximity transducers, conditions the signal to provide various vibration and position measurements, and compares the conditioned signals with user-programmable alarms. The user can program each channel of the 3500/40M with the 3500 Rack Configuration Software to perform any of the following functions:
Radial vibration
Thrust position
Differential expansion
Eccentricity n REBAM
Specifications
| Part No. | 3500/33 |
| Inputs Signal |
Accepts from 1 to 4 proximity transducer signals |
| Power consumption | 7.7 watts, typical |
| Standard I/O | 10 kΩ (Proximitor and acceleration inputs |
| Output Impedance | 550 Ω |
| Transducer Power Supply | -24 Vdc |
| Monitor Module (Main Board) Dimensions |
241.3 mm x 24.4 mm x 241.8 mm (9.50 in x 0.96 in x 9.52 in) |
| Weight | 0.91 kg (2.0 lb) |
