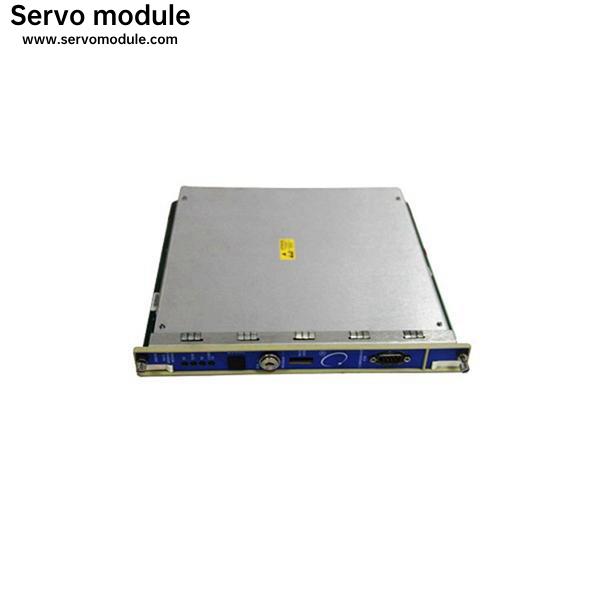

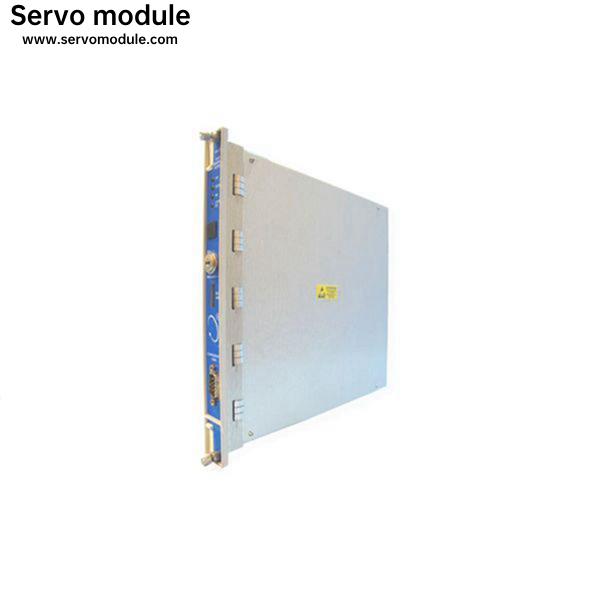

Bently Nevada 3500/42M 140471-02
Overview
3500/42M 169715-01 is I/O module. The 3500/45 Position Monitoris a 4-channel instrument that accepts input from proximity transducers, Rotary Position Transducers (RPTs), DC Linear Variable Differential Transformers (DC LVDTs), AC Linear Variable Differential Transformers (AC LVDTs), and rotary potentiometers. The monitor conditions the input and compares the conditioned signals with userprogrammable alarms.Protects machinery by continuously comparing monitored parameters against configured alarm setpoints to drive alarms.For spare front and rear cover plates,please see 3500/05 System Rack datasheet (document 141525)
Specification
|
Ordering Option |
I/O Module P/N. | I/O Module Description | Transducer Type |
| 1 | 128229-01 | Prox/Seismic I/O Module with internal terminations | Seismoprobe Prox/Accel and Velomitor are supported but are not recommended. |
| 2 | 128240-01 | Prox/Seismic I/O Module with external terminations | Seismoprobe Prox/Accel and Velomitor are supported but are not recommended. |
| 4 | 135489-01 | I/O Module with internal Barriers, internal terminations, 4 x Prox/Accel | Prox/Accel on channels 1 through 4 |
| 5 | 135489-02 | I/O Module with internal barriers, internal terminations, 2 x Prox/Accel and 2 x Velomitor |
Prox/Accel on channels 1 and 2 Velomitor on channels 3 and 4 |
| 6 | 135489-03 | I/O Module with internal barriers, internal terminations, 4 x Velomitor | Velomitor on channels 1 through 4 |
| 7 | 138708-01 | Shaft Absolute I/O Module with internal terminations | Prox/Accel or Velomitor or Seismorprobe |
| 8 | 138700-01 | Shaft Absolute I/O Modules with external terminations | Prox/Accel or Velomitor or Seismorprobe |
| 9 | 140471-01 | Prox/Velom I/O Module with internal terminations | Prox/Accel, Velomitor or HTVS |
| 10 | 140482-01 | Prox/Velom I/O Module with external terminations | Prox/Accel, Velomitor or HTVS |
