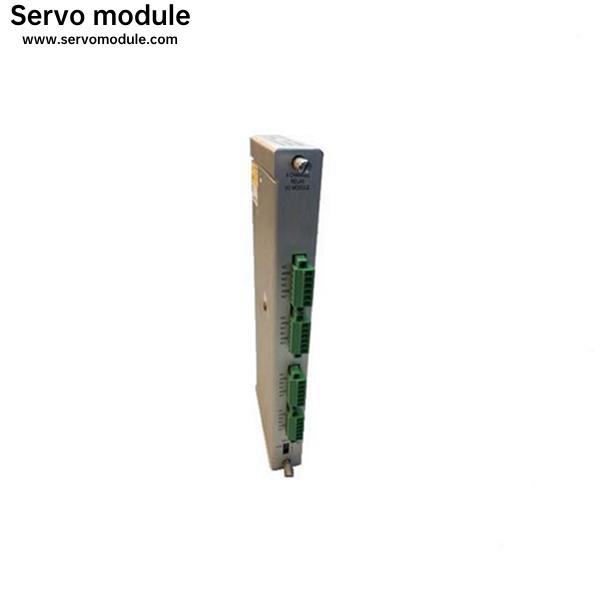

Original New Bently 136188-02 Modbus I/O Modulefor 3500/92 In Stock
Overview
The 3500/92 Communication Gateway module provides extensive communication capabilities of all rack monitored values and statuses for integration with process control and other automation systems using both Ethernet TCP/IP and serial (RS232/RS422/RS485) communications capabilities. It also permits Ethernet communications with 3500 Rack Configuration Software and Data Acquisition Software.
The Ethernet connection to the 3500/92 is an RJ45 connection for 10BASE-T star configuration Ethernet networks. The 3500/92 supports the communication interfaces, communication protocols, and other features from the original 3500/90 with the exception of the primary value Modbus registers. The 3500/92 now has a Configurable Modbus Register Utility, which can provide the same functionality originally addressed by the primary value Modbus registers.
Specification
| Part No. | 3500/92 |
| I/O Module |
136188-02 |
| Other Modules |
136180-01, 125736-01, 133323-01, 136188-01 |
| Inputs Power Consumption | 5.0 watts typical with ModbusRS232/ RS422 I/O Module 5.6 watts typical with Modbus RS485 I/O Module |
| Outputs OK LED: | Indicates when the 3500/92 is operating properly. |
| Outputs TX/RX LED: | Indicates when the 3500/92 is communicating with other modules in the 3500 rack |
| BNC Host Protocol | Communication with 3500 Configuration Software and 3500 Data Acquisition and Display Software over Ethernet TCP/IP |
| Modbus |
Based on AEG Modicon PIMBUS-300 Reference Manual.Uses Remote Terminal Unit (RTU) transmission mode. |
