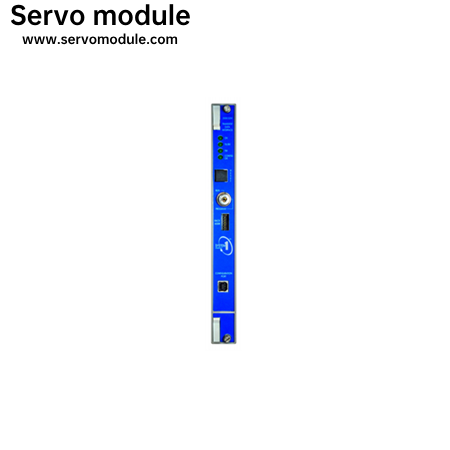

Bently Nevada 3500/92(136180-01) Communication Gateway

Description

The 3500/92 Communication Gateway module provides extensive communication capabilities of all rack monitored values and statuses for integration with process control and other automation systems using both Ethernet TCP/IP and serial (RS232/RS422/RS485) communications capabilities. It also permits Ethernet communications with 3500 Rack Configuration Software and Data Acquisition Software.

Supported protocols include:

-Modicon Modbus protocol (via serial communications)

-l Modbus/TCP protocol (a variant of serial Modbus used for TCP/IP Ethernet communications)

-l Proprietary Bently Nevada protocol (for communication with 3500 Rack Configuration and Data Acquisition Software packages)

Keyphasor Module

The 3500/25 is a halfheight module that provides power and termination for up to two Keyphasor transducers. When applications require one or two Keyphasor transducers, simply install a single3500/90 125728-01module. The 3500 System can accommodate up to four Keyphasor transducers per rack by installing two3500/90 125728-01Keyphasor modules in the rack. When two 3500/25 Keyphasor modules are used, they must be installed in the same rack slot,3500/90 125728-01one above the other. Keyphasor signals from the 3500/25 module(s) can be routed to appropriate monitor modules via the 3500’s rack backplane for use in speed, phase, tracking filter, and other measurements
