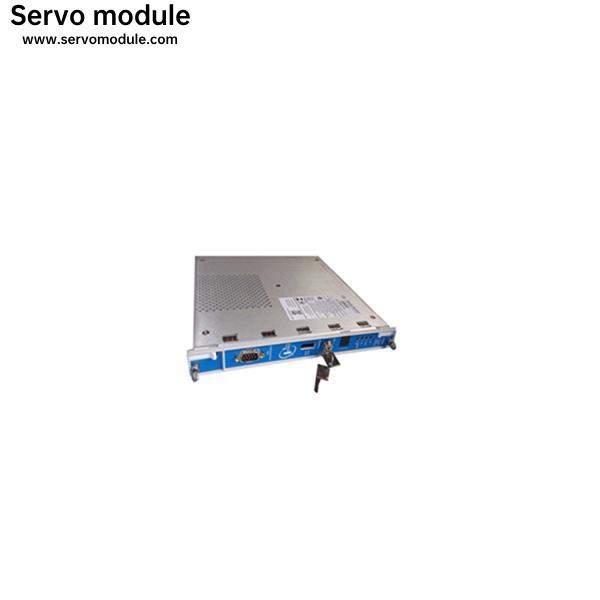

Bently Nevada 147663-01 VGA Display I/O Module

Display Monitors

Bently Nevada, Inc. offers five approved display monitor types, which are the only types that will properly interface to the 3500/94 VGA modules. Each display is intended to meet different application requirements. It is important that you make the right selection for your application. For outdoor installations,147663-01all display types require a hood to block direct sunlight. Each display requires a separate power supply. As an option item, the KVM Extender may be selected for remote sites up to 305 m (1000 ft). While the KVM Extender will meet most viewing requirements, the extender will degrade picture image quality and may be affected by noisy environments. Therefore,147663-01users should avoid using the KVM Extender unless the standard 8 m (25 ft) cable length is not adequate.

All display monitor types are “Touch Screen”.147663-01Because the “Touch Screen” controllers differ, users must configure each display monitor type using the 3500 Rack Configuration Software.

The 3500/94 offers a Display Router Box that allows up to four 3500 racks to drive a single display. The Display Router Box acts as a switch box that allows the operator to switch the display between racks. An important feature of the Display Router Box is its ability to show the alarm and OK status of each connected rack.
