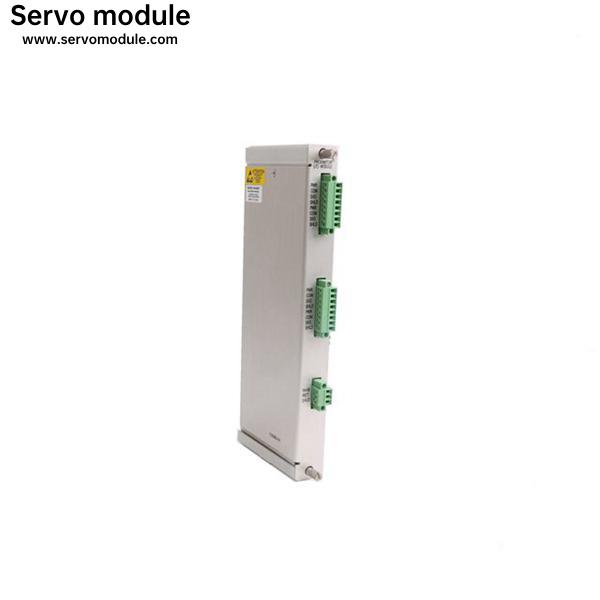

Bently Nevada 3500 Proximator I/O Module 126615-01

Power Supply

The 3500/15 Power Supply can be ordered for ac or dc input power, providing compatibility with voltage sources worldwide. Line noise filters are standard. The 3500 Rack can operate from a single supply, or dual supplies can be used to provide redundancy for situations that cannot tolerate power interruption.

Dual supplies reside in the upper and lower positions of the left-most rack slot. Redundant supplies can use separate voltage sources. For example, the primary (lower) supply can operate with 120 Vac power while the backup (upper) supply can be powered from an uninterruptible 24 Vdc source.

Each supply can individually provide power to the entire rack and its modules. When redundant supplies are used, the lower supply acts as primary power for the rack while the upper supply acts as a backup, ready to instantly and automatically operate as the primary rack supply without interrupting rack functions should the primary supply fail.
