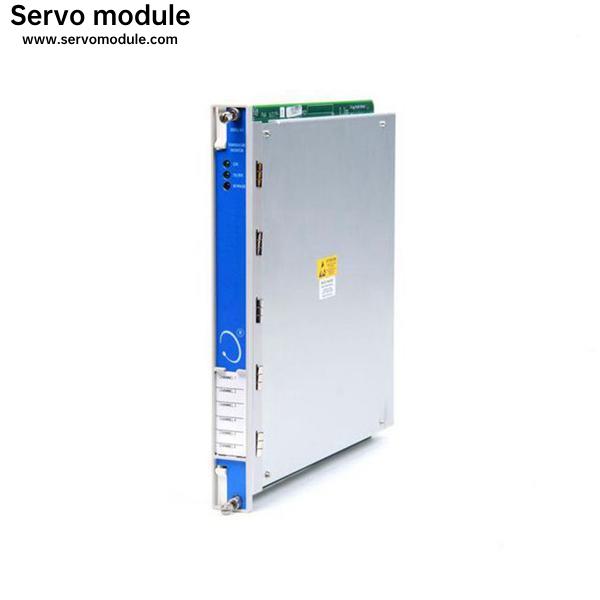

Bently Nevada 128240-01 I/O module

Input/Output Modules

Every module (Monitor, Keyphasor, Power Supply, Communication Processor, etc.) requires a corresponding I/O module. Main modules connect to the backplane inside the rack, and I/O modules connect with the other side of the backplane, behind their associated main modules. For bulkhead-mounted racks, only, each I/O module connects to the face of the backplane above its associated main module.

The 3500 System provides continuous, online monitoring suitable for machinery protection applications, and is designed to meet the requirements of the American Petroleum Institute’s API 670 standard for such systems.

The 3500/15 Power Supply can be ordered for ac or dc input power, providing compatibility with voltage sources worldwide. Line noise filters are standard. The 3500 Rack can operate from a single supply, or dual supplies can be used to provide redundancy for situations that cannot tolerate power interruption.
