NewBently Nevada990-05-70-03-00

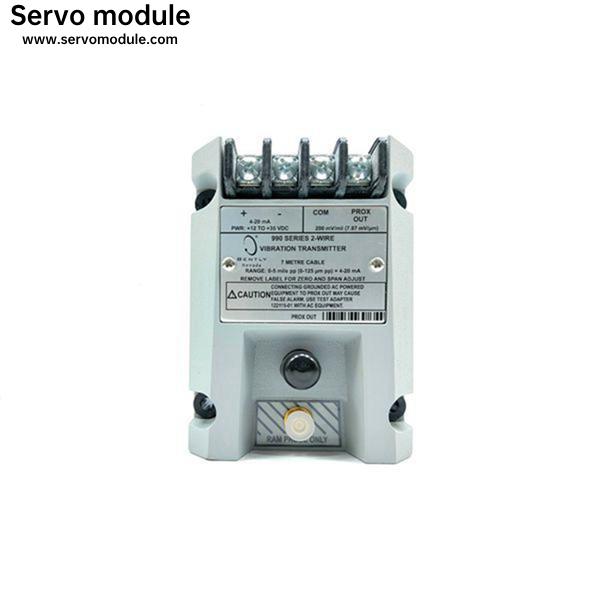

Original 990 Vibration Transmitter

Description
The Bently Nevada 990 Vibration Transmitter is a two-wire, loop-powered device that is designed for Original Equipment Manufacturers (OEMs) of centrifugal air compressors, small pumps, motors, or fans. The transmitter accepts input from a Bently Nevada 3300 NSv proximity probe and conditions the signal into a proportional 4 to 20 mA industry-standard signal. This signal can then be used as input to a machinery control system for protection and alarming.
Features
Integrated Proximitor Sensor: The 990 transmitter does not require an external sensor.
Non-isolated "PROX OUT" and "COM" terminals plus a coaxial connector: These terminals provide a dynamic vibration and gap voltage signal output for diagnostics.
Non-interacting zero and span potentiometers: These potentiometers allow for easy loop adjustment.
Test Input pin: This pin allows for quick verification of loop signal output.
Not OK/Signal Defeat circuit: This circuit prevents high outputs or false alarms due to a faulty proximity probe or loose connection.
Choice of DIN-rail clips or bulkhead mounting screws: These options simplify mounting.
Technical Specifications
Input: Bently Nevada 3300 NSv proximity probe
Output: 4 to 20 mA
Full-scale range: 0 to 5 mils pp (0 to 125 µm pp)
System length: 7.0 meters (23.0 feet)
Power supply: 24 VDC loop power
Operating temperature: -40 to 80 °C (-40 to 176 °F)
Ingress protection: IP67
