Description

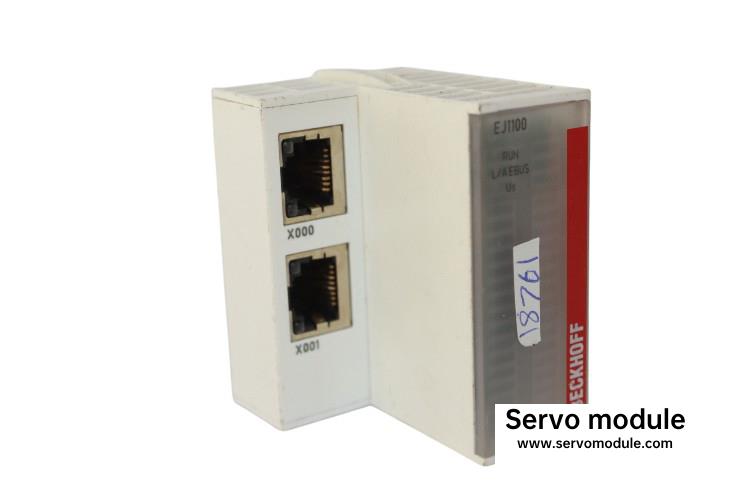

Beckhoff EJ1100 EtherCAT Coupler
The Beckhoff EJ1100 EtherCAT Coupler is designed to connect EtherCAT devices in industrial Ethernet networks, enabling fast and reliable communication. This coupler operates with a 24 V DC power supply and provides a current supply of 2200 mA to the E-bus, ensuring seamless integration with EtherCAT systems. With electrical isolation of 500 V and a data transfer rate of 100 Mbit/s, it supports the EtherCAT protocol, ensuring high-speed data exchange. The coupler features a field wiring connection method with application-specific wiring levels on the signal distribution board and utilizes a 2 x 20-pin socket strip for the EJ plug-in module. Its compact design allows easy installation on signal distribution boards, and it offers a maximum distance of 100 m between stations using 100BASE-TX connections. The unit operates in environments with temperatures ranging from -25°C to +60°C, providing a reliable and robust solution for industrial networking needs.
Manufacturer: Beckhoff
Type: EtherCAT Coupler
Model: EJ1100
Technical Information:
- Power Supply: 24 V DC
- Current Supply E-bus: 2200 mA
- Electrical Isolation: 500 V
- Installation: On signal distribution board
- Connection Method: Field wiring: application-specific wiring level on the signal distribution board, EJ plug-in module: 2 x 20-pin socket strip
- Distance Between Stations Max.: 100 m (100BASE-TX)
- Data Transfer Medium: Industrial Ethernet/EtherCAT cable (min. Cat.5), shielded
- Protocol: EtherCAT
- Delay: Typ. 1 µs
- Data Transfer Rates: 100 Mbit/s
- Bus Interface: 2 x RJ45
- Degree of Protection: IP20
- Material: Polycarbonate
- Operating Temperature: -25°C to +60°C
- Dimensions (W x H x D): 44 x 66 x 55 mm
Offering a reliable and fast connection for EtherCAT systems, the EJ1100 EtherCAT Coupler ensures efficient communication and integration in industrial applications.
