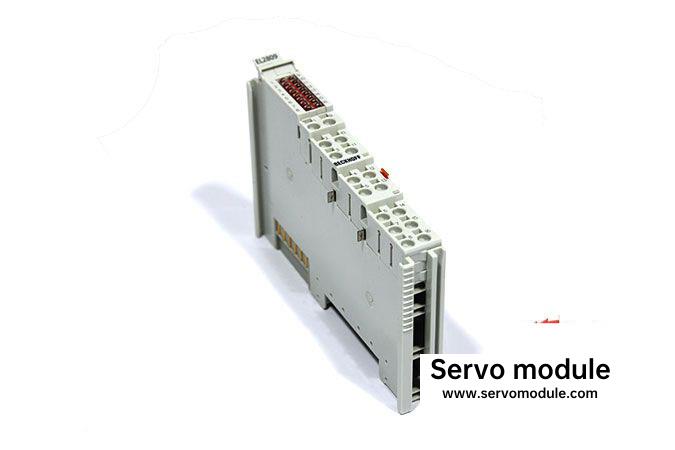

BECKHOFF EL 2809 16-CHANNEL DIGITAL OUTPUT

2025-07-10 Beckhoff 0

Email:plc@servomodule.com

Manufacturer：Beckhoff
Product Number：EL 2809 16-CHANNEL DIGITAL OUTPUT
Condition：brand new
Origin：Germany
Stock：11
Payment Methods：T/T, PayPal, Western Union
Warranty：12 months
Lead Time：3-7 Working Days
Courier partners：DHL, UPS, TNT, FedEx and EMS.
Business hours：7*24

—————————————————————————————————————————————————
★First-hand source, no middlemen to make profits!
★As long as you want, I can help you find it!
★Brand new original, one-year warranty!
—————————————————————————————————————————————————

Details

Description

Manufacturer: BECKHOFF

Type: EtherCAT Terminal, 16-Channel Digital Output

Model: EL2809

No. of Outputs: 16 DO

Load voltage: 24 V DC (-15%/+20%)

Max. Output Current: 0.5 A

Short-Circuit Current: Typ. < 2 A

Load type: ohmic, Inductive, Lamp Load

Switching Times: TON: 60 µs, typ. TOFF: 300 µs

Output Current: 500 mA

Current Consumption: 35 mA

Isolation: 500 V

Operating Temperature: -25 … 60 °C

Protection: IP20

Material: Polycarbonate

Dimensions: 12 x 100 x 68 mm

Weight: 70g
