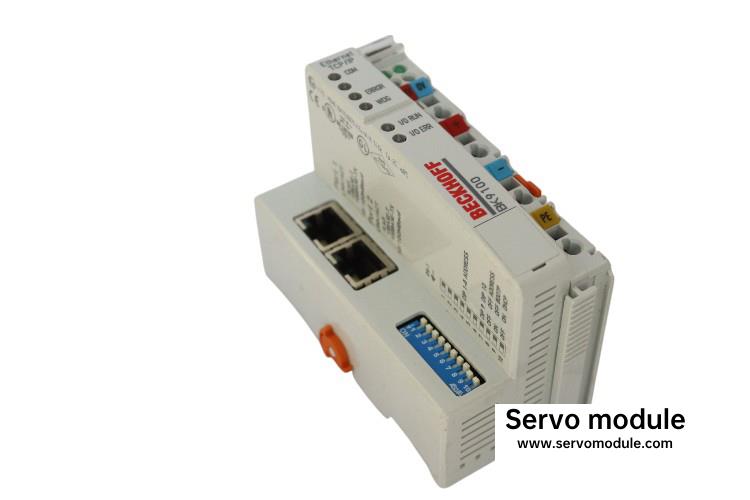

Beckhoff BK9100 Bus Coupler
The Beckhoff BK9100 Bus Coupler is an advanced and efficient solution for integrating various devices into an industrial automation system. With a power supply of 24 VDC and an input current of 70 mA, this coupler is capable of supporting up to 1750 mA of K-bus power supply. It is designed to handle digital and analog peripheral signals, with up to 512 digital inputs/outputs and 128 analog inputs/outputs. The coupler uses two RJ45 connectors for bus connections, allowing for easy and reliable communication between modules. It features a maximum power contact voltage of 24 VDC and supports a maximum current load of 10 A on power contacts, making it a versatile solution for connecting a wide range of industrial peripherals. The BK9100 operates effectively in environments with ambient temperatures between -25°C and 60°C, providing reliable performance even under harsh conditions.
Manufacturer: Beckhoff
Type: Bus Coupler
Model: BK9100
Technical Information:
- Power Supply: 24 VDC
- Input Current: 70 mA + (total K-bus current)/4, 4.500 mA max.
- Starting Current: approx. 2.5 x continuous current
- K-bus Power Supply Up To: 1750 mA
- Power Contact Voltage Maximum: 24 VDC
- Power Contact Current Load Maximum: 10 A
- Number of Bus Terminals: 64
- Digital Peripheral Signals: 512 inputs/outputs
- Analog Peripheral Signals: 128 inputs/outputs
- Bus Connection: 2 x RJ 45
- Distance Between Modules: 100 m
- Number of I/O Modules: Limited by IP address space
- Number of I/O Points: Dependent on controller
- Protection Class: IP20
- Ambient Temperature: -25°C to 60°C
- Dimensions: 100 x 51 mm
This bus coupler offers outstanding flexibility and reliability in integrating peripheral devices for industrial automation, enabling a robust and efficient communication network.
