Description

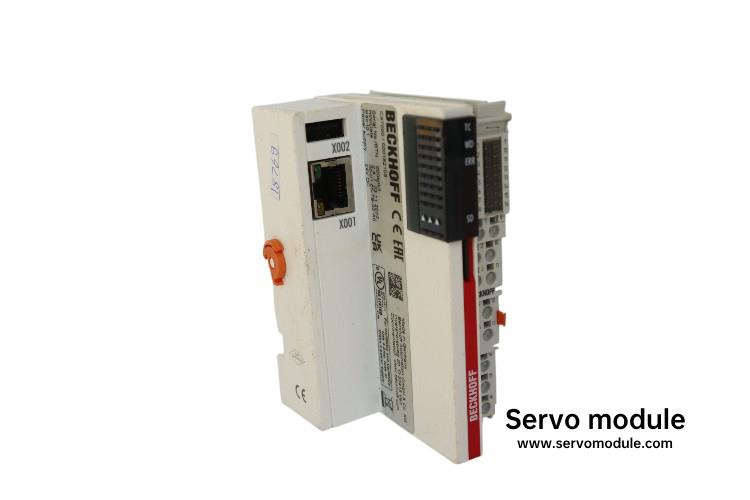

Beckhoff CX7000 Digital Input
The Beckhoff CX7000 Digital Input is a high-performance device designed for use in industrial automation and control systems. This input module is based on 1-wire connection technology and offers 8 inputs, each with a nominal voltage of 24 V DC. The module is capable of handling a maximum output current of 24 V/0.5 A, making it suitable for a variety of industrial control tasks. The CX7000 features configurable input filtering, with the default filter set at 3 ms, and it can be reduced to a minimum of 10 μs for high-speed applications.
Manufacturer: Beckhoff
Type: Digital Input
Model: CX7000
Technical Information:
- Connection Technology: 1-wire
- Number of Inputs: 8
- Nominal Voltage: 24 V DC
- Max. Output Current: 24 V/0.5 A
- Number of Inputs: 2
- Internal Resistance: 500 KΩ
- Counter Depth: 32-bit
- Signal Voltage “0”: -3 / +5 V
- Signal Voltage “1”: 11 / 30 V
- Input Filter: Configurable, default: 3 ms, min.: 10 μs
- Strip Length: 8 / 9 mm
This digital input module is ideal for applications that require precise control and monitoring of digital signals, providing reliable and efficient operation in a range of industrial environments.
