ABB 800xAS800 I/O Communication moduleABB 3BSE013252R1CI830
Introduction
ABB CI830 3BSE013252R1 is S800 I/O Communication module.The S800 I/O provides easy installation of the I/O modules and process cabling. It is highly modularized and flexible so that the I/O modules can be combined to suit many applications, including most types of signals, HART and Intrinsic Safety Interface. The S800 I/O modules and a Fieldbus Communication Interface (FCI) are combined to form an I/O Station. The S800 I/O can be used in both single and redundant applications. In general, all S800 units are G3 compliant. G3 compliant modules withstand more severe environmental conditions according to ISA-S71.04. The following S800 units are G2 compliant - SD821, SD822, SD823, SD831, SD832, SD833, SD834, SS822, SS832, TB811 and CI830. G3 compliant versions of SD822 and SS822 are also available (refer to SD822Z and SS822Z)
| Part No. |
CI830 |
| Product ID |
3BSE013252R1 |
| Catalog Description |
CI830 Profibus Communication Interface |
| Catagories |
800xA | S800 I/O | Communication Modules |
| Medium Description |
CI830 PROFIBUS DP-V1Communication Interface |
| Dimesion | 128*185*59mm |
| Same Series |
|
S800 I/O is a comprehensive, distributed and modular process I/O system that communicates with parent controllers over industry-standard field buses. Thanks to its broad connectivity it fits a wide range of process controllers from ABB and others.
S800 I/OFeatures:
Comprehensive coverage
Flexible configuration and installation
Ease of set up
Reliability and accuracy
HART pass-through
Redundancy also on I/O module level
High Integrity I/O modules certified to SIL3
High accuracy time tagging
Defined outputs at communication errors
I/O modules with Intrinsic Safety interfaces

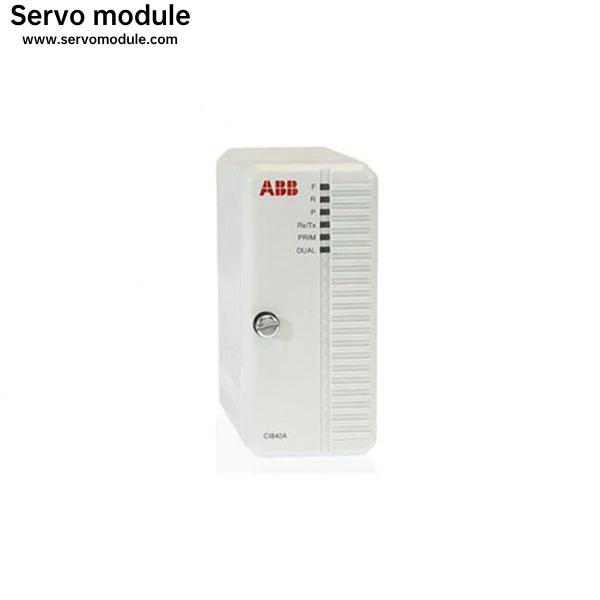

| S800 I/O Parts | CI801 | CI840A | CI845 | TC810 | TC811 |
| Article number | 3BSE022366R1 | 3BSE041882R1 | 3BSE075853R1 | 3BSE076220R1 | 3BSE078714R1 |
| Function | PROFIBUS-DPV1 fieldbus communication interface.Isolated power supply to I/O modules. | PROFIBUS-DPV1 fieldbus communication interface. Isolated power supply to I/O modules. |
Ethernet fieldbus communication interface. Use as single or redundant, together with TC810 or TC811 and TU860. |
Ethernet Adapter for copper media. Use together with CI845 and TU860.Supports both Select I/O and S800 on Ethernet. | Ethernet Adapter for single mode fiber. Use together with CI845 and TU860. Supports both Select I/O and S800 on Ethernet. |
| Redundant | No | Yes | Yes | Yes | Yes |
| Power Input | 24 V d.c. (19.2 - 30) | 24 V d.c. (19.2 - 30) | 24 V d.c. (19.2 - 30) | 24 V d.c. (19.2 - 30) | 24 V d.c. (19.2 - 30) |
| Power Input Fuse | 2 AF | 2 AF | 2 AF | 2 AF | 2 AF |
| Power Consumption | 140 mA | 190 mA | 150 mA | 60 mA | 80 mA |
| Power Dissipation | 5.4 W | 7.7 W | 5 W | 0.8 W | 2 W |
