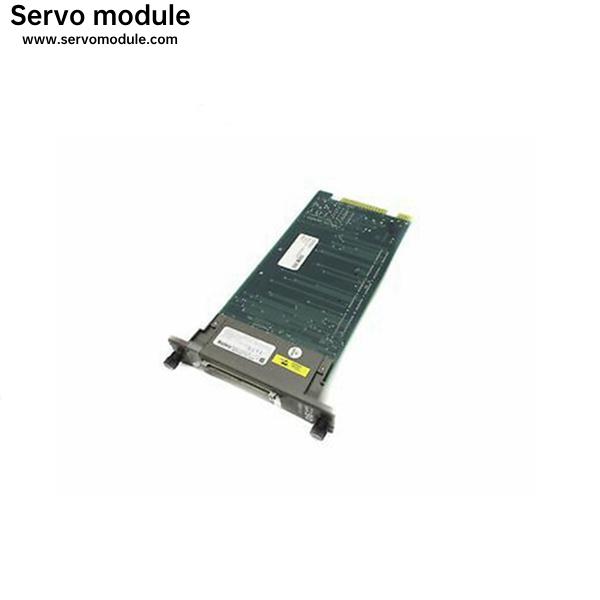

ABB IMFEC12 Analog Input Module 1 Year Warranty

NTRODUCTION

This section explains how to detect IMFEC1 analog input module errors and the corrective action to take for those errors. Status reports from the control module are available through any INFI 90 OPEN operator interface such as an operator interface station (OIS), configuration and tuning terminal (CTT) or an IBM® AT compatible computer with the SmartLink transmitter management software package.

From the module summary display on the operator interface, call up the I/O SLAVE status report. The status report will display specific FEC module and smart transmitter error codes when an error occurs. The status report lists the following: I/O SLAVE ERROR NUMBER (#), SLAVE ADDRESS (#), BLOCK NUM. (#)

CPU Modules

Several CPU modules are available that vary in terms of processing power, memory size, and redundancy support. Each CPU module is equipped with built in Ethernet port(s) for communication with other controllers and for interaction with operators, engineers, managers, and higher level applications. These ports can be configured for redundancy for those cases where availability is of paramount importance. It is also equipped with two RS-232C ports that can be used for pointto-point communication with programming/debugging tools and with third-party systems and devices.
