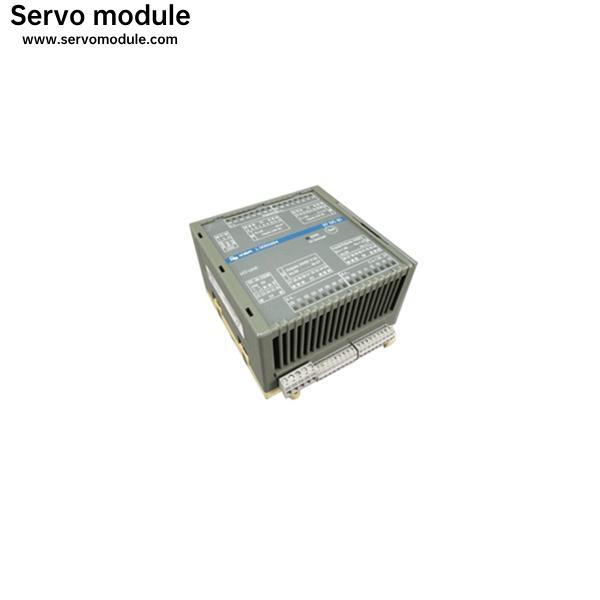

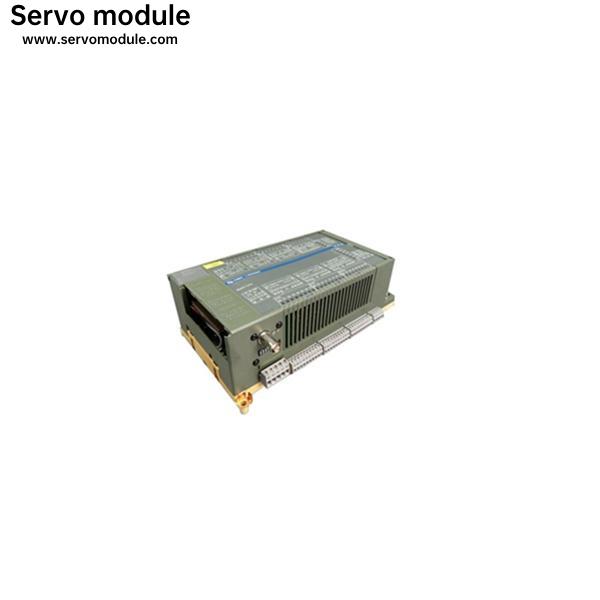

ABB 3BSE032444R1 CI860K01 Communications Input Module

Fieldbus Communication Interface

A Fieldbus Communication Interface module is used as communication interface to connect S800 I/O modules to the fieldbus

They all have an isolated input for 24 V d.c. power (19.2 - 30 V). The power source can be the SD821/SD822/SD823 power supplies, battery, or other IEC664 Installation Category II power sources.3BSE032444R1 CI860K01Power status inputs, 2 x 24 V, to monitor 1:1 redundant mains are also provided. CI801 has a 9 pin D-sub connector and modems for PROFIBUS-DPV1 and a connection for the Optical ModuleBus via3BSE032444R1 CI860K01TB806/TB842. CI810 has two connectors and modems for a media redundant Advant Fieldbus 100 twisted pair cables and a connection for the Optical ModuleBus.

S800 information

S800 I/O provides distributed I/O on PROFIBUS and Advant Fieldbus 100 (AF100). S800 I/O is also used as a communication link to some of ABB’s Drives. With the network definition PROFIBUS, it means the both versions; PROFIBUS-DP and PROFIBUS-DPV1. An I/O station can be configured over the Fieldbus. Typical parameters are signal range, filter time, etc. The status of the modules are indicated by LEDs and also accessible over the fieldbus. Analog values are scaled 0-100% of the signal range. AI/AO modules are scanned every 4th I/O scan cycle. RTD/TC every 10th cycle. Values are transferred cyclically on the fieldbus limited by the fieldbus and the fieldbus master. The Fieldbus Communication Interface is scanning the I/O modules cyclically. The cycle time, 4-108 ms, is dependent on type and number of modules.
