Original New Dcs Module Supply ABB 3BHE014105R0001 AC10272001R0101

Description

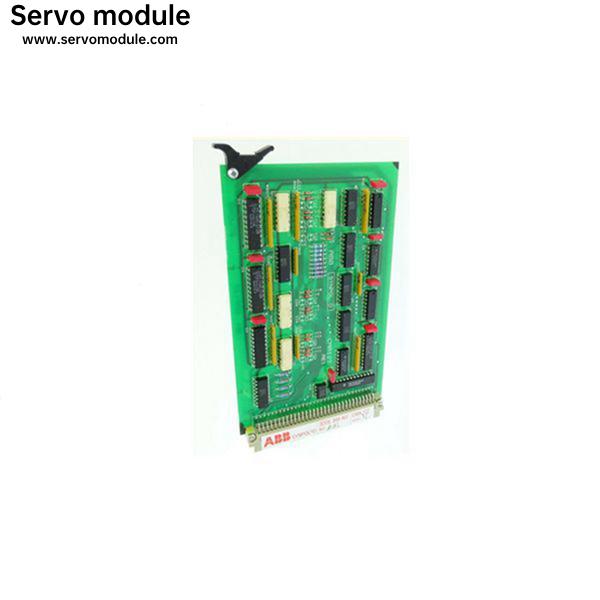

The digital input and output board, DSQC 223, has 16 opto-isolated inputs and 16 opto-isolated outputs. Each input and output has its own yellow LED which indicates whether or not the input/output is activated. The inputs and outputs normally receive their 24VDC supply from a customer connection, but this can also be supplied internally (XS3/XT3 terminals A15,B15,A16,B16,C16. If none of the I/O channels work, check first that the boards are initialized (the red F-LED should be OFF on all I/O boards). Note that if, for some reason, the system's parameters change, the red LED may be ON. Otherwise, the red LED may indicate that the I/O boards are faulty. Check also that the boards have a 24VDC supply (internal or external). Common sources of errors are cable faults, sensor faults, etc. You can use the I/O menu on the teach pendant to check whether the current I/O board is functioning properly. Refer to Chapter 11 - Inputs & Outputs for procedure.

ABB Main Series

ABB DCS800xASystem/S800

ABB DCS800xASystem/S900

ABB AdvantOCS/800XA

ABB H&BFreelance2000

ABB BAILEY-INFI90/Bailey Net 90

ABB DSQCRobot Parts

ABB PLCCards and Boards

About Us

Servo module Parts Limitedfor many years, is a professional engaged in large-scale system (distributed control system, programmable controller, redundant fault-tolerant control systems, robot control system, large servo control system is the central feeding system plastic molding auxiliary equipment and automation of whole plant planning) imported automation system such as spare parts, modules, sales and system integration of high-tech enterprises. The company is equipped with professional technicians to provide customers with better service.

FAQ

1.What about the warranty?
All products have a 1 year warranty.

2.What is the delivery time?
Usually 1-3 Working Days

3.Other suppliers have better prices than you?
"It is our belief to create the greatest benefit for our customers.If you have a better price, please let us know.We will do our best to meet your price and support you.

4.How about the shipment?
We can arrange shipments at competitive prices such as DHL, FedEx, UPS, TNT, etc.

5.What are the payment terms?
Generally, T/T, Credit Card and Western Union are also accepted.
