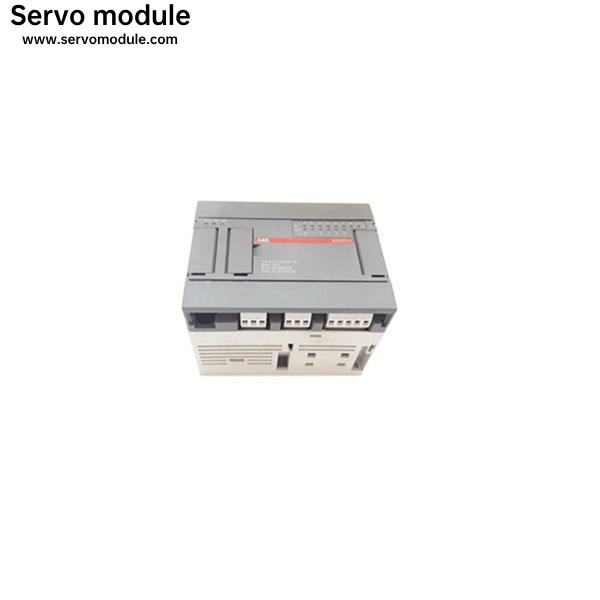

100% New ABBNTMP01 Module Low Price

Product Details

The NPM module supports the warm failover feature which is the ability to switch from the primary process control unit interface to the redundant backup process control unit without losing any information or functionality. An NKMP01 or NKMP11 cable is required for redundant module operations. For optimum warm failover performance, the NIS module firmware revision should be E.0 or later. In redundant NPM module applications, the dipswitches on the primary and backup NPM module must be set identically except for the module address setting, which must be unique. Configure the NPM module as follows.The communication system provides a means to monitor the status of the power system of each node. This status information can be displayed on the operator console. Electronics within the power entry panel monitor the power system status. A single status output is made available to the communication system. To use this feature, wire the status output to the terminal block on the termination device (NTCL01 or NICL01) labeled PSS1 or PSS2. Two sets of terminals are available on each termination device for interconnecting the power system status output. This power system status signal is fed through the termination device cable to the P3 connector on the NIS module. The power system status input is a TTL-compatible signal. A high voltage level on power system status indicates good status. A low voltage level indicates bad status. When no connection is made to either of the power system status inputs, a pull-up resistor on the NIS module causes a high level signal on the power system status input, thereby reporting good status.

S800 I/OFeatures:

Comprehensive coverage

Flexible configuration and installation

Ease of set up

Reliability and accuracy

HART pass-through

Redundancy also on I/O module level

High Integrity I/O modules certified to SIL3

High accuracy time tagging

Defined outputs at communication errors

I/O modules with Intrinsic Safety interfaces

Our Supply Range
1. Allen-Bradley 1756/1769/1771/1785 Series (1769-L30ERMS,1769-L30ER-NSE,1769-L33ERMS,1756-L61,1756-L62,1756-L73）
2. ABB 800xA/Bailey INFI90/DSQC/ Series (07KT98 WT98,07KT97 WT97,DSQC679,IMASI23,IMDSO14...)
3. Bently Nevada 3500/3300 Series (3500/42M ,3500/22M,3500/95.3500/15)
4. Schneider Modicon Series (140CPU65150,140CPU67060,140CRA ,140CPS)
5. GE IC693/IC697/IC698/IS200/DS200 Series (IC693CPU363,IC697PWR711,369-HI-0-0-0-0,DS200ADGIH1AA)
6. SIEMENS MOORE/S5 Series (6ES7 cards,6ES5,6DD,6DP)
7. Westinghouse/OVATION (1C31194G01,1C31197G01,5X00106G01,1C31125G02...)
8. ROSEMOUNT: (3008,3664,3805E.3704E,3700A 4351B...)
9. FOXBORO (FCP270,FBM203,FBM204,FBM217,FMB231...)
