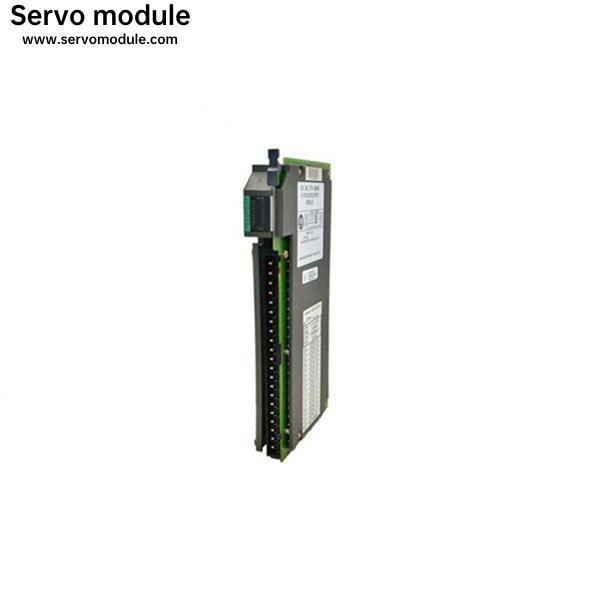

100% Original RockwellAllen Bradley1746-IA8Module

Introduction

The 1746-OAP12 SLC 500 Digital Output Module by Allen-Bradley is an AC output module fitted in any slot of the 1746 Chassis and it comes with a Removable Terminal Block (RTB). It has 12 outputs with 6 output points per electronically-fused common. The 1746-OAP12 has 120-240V AC of output voltage category and it has a module voltage range between 85 and 265V AC at 47-63Hz. The module has a backplane current of 0.370A at 5V DC voltage and it reaches 0A at 24V DC. The 1746-OAP12 has an output signal delay time of 11ms for OFF mode and 1ms for ON mode and the maximum leakage current on its output in its OFF state is 2mA. The lowest possible current load on each output point is 10mA, and the normal current on each point is 2A at 30 deg. Celsius (86 deg. Fahrenheit) and 1A at 60 deg. Celsius (140 deg. Fahrenheit). The 1746-OAP12 module has a total output current of 9A at 30 deg. Celsius (86 deg. Fahrenheit) and it has a voltage loss of 1.2V DC at 2.0A. It has a surge current of 17A for 25ms repeatable every 2 seconds at 60 deg. Celsius on each point and it has a surge of 35A per common for 10ms. The 1746-OAP12 has a maximum 1AW heat dissipation on each point and an overall module heat dissipation of 10.85W. Its operating temperature ranges between 0 and 60 deg. Celsius (32 and 140 deg. Fahrenheit) at 5-95% relative humidity without condensation. The 1746-OAP12 has an operational shock rating of 30G and a vibrational withstand of 5G at 10-500Hz. The 1746-OAP12 has Twelve (12) output channels with Six (6) points per common with each common installed with an electronic fuse. Additionally, it provides an isolation as one group of output channels may still continue to operate even if the fuse of the other channel group is busted. Additionally, this output module has an internal fuse that may be modified to enable monitoring of blown fuse. To enable monitoring of fuse, the jumper is set to short pins 2 and 3. By default, the jumper is set to terminals 2 and 1 which disables the monitoring of the fuse.

Allen Bradley Main Products:

1. SLC500:1747/1746 series 2.MicroLogix: 1761/1763/1762/1766/1764 series 3.CompactLogix: 1769/1768 series 4. The ControlLogix: 1756/1794/1760/1788 series 5. PLC-5:1771/1785 series 6.2711,2711P PanelView man-machine interface, touch screen, operation panel 7.22A,22B, 20 small frequency converter,150 soft starter 8. ProSoft: MVI69 / PS69 / MVI56 / MVI94 / MVI71 / MVI46/3150 9. ICS TRIPLEX: T8431 / T8461 / T3401 / T8310

Our Advantage

FAQ: 1.Is the part new? Yes, 100% Original brand new 2.How is the package? Original factory seal packed 3.What is the lead time? In stock: 1-3 working days 4.What is the MOQ: 1pcs 5.What is the payment term: TT and Western Union, other negotiable 6.Where the item ship from? Xiamen 7.What is the warranty time? One year

8. How to delivery the PLC Parts? Kindly tell us your address,we check best cost for you Or you can use your own courier account or agent, DHL, FEDEX, UPS etc are available.

①Allen-Bradley(USA AB)Series

②Schneider(Schneider Electric)Series

③General electric(General Electric)Series

④Westinghouse Series

⑤SIEMENS Series

⑥ABB Robots. FANUC Robots、YASKAWA Robots、KUKA Robots、Mitsubishi Robots、OTC Robots、Panasonic Robots、MOTOMAN Robots.

⑦Westinghouse: OVATION System、WDPF System、MAX1000 system spare parts.

Conversion、I/O Signal processing、Data communication systems?Digital-to-Analogue

⑧Invensys Foxboro I/A Series system，FBM（I/O）SCS、Trapezoidal logic control、Accident recalling、DAC

Invensys Triconex: Redundant fault-tolerant control system、Most modern fault-tolerant controller based on Triple Modular Redundancy (TMR) architecture.

⑨Siemens：Siemens MOORE，?Siemens Simatic C1，Siemens CNC system.

Other Brand Products
