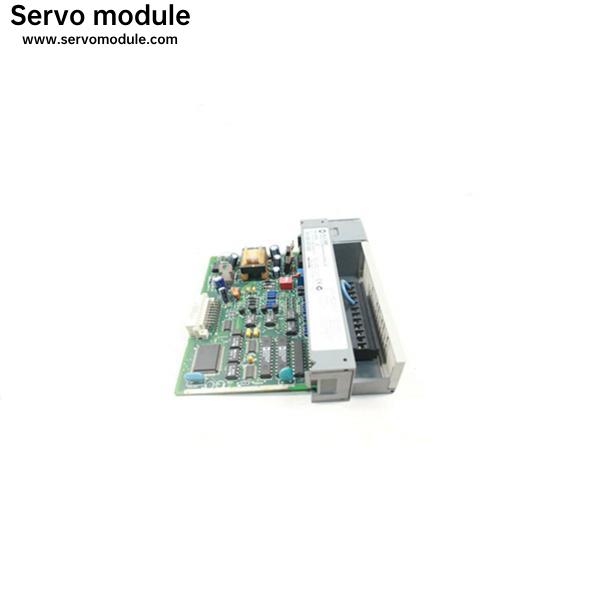

Allen-Bradley 1746-NI8 SLC 500 Analog Input Module, 8 Channels

TheAllen-Bradley 1746-NI8is an SLC 500 Analog Input Module. This single-slot input module is suited for time-sensitive applications which require accurate and rapid analog signal conversion. The1746-NI8is a high-resolution analog input module with high-density components. It has 8 high-impedance input channels which can be wired as single-ended or differential inputs. The input module receives analog data and converts it to digital data which is then stored in the module’s image table. This process allows all modular and fixed SLC 500 processors to access the data.

Up to 8 connections to analog or voltage sensors in any combination can be made.Conversion to digital operation can be done using the switched capacitor and successive approximation.The configuration process for the1746-NI8depends on its class. As a single-slot module it can be either Class 1 or 3. Class 1 configuration uses 8 words for input and 8 words for output; whereas, Class 3 configuration uses 16 words for input and 12 for output.

The1746-NI8is able to fit into any slot in either an SLC 500 fixed system expansion chassis or an SLC 500 modular system except the Processor (0) slot. The Self-Locking Tabs secure the module into the chassis slot. The SLC circuitry receives power from the 5V DC backplane supply with a 200mA current consumption, while the analog circuitry receives power from the 24V DC backplane with a 100mA current consumption. It requires no external supply. The1746-NI8operates effectively at temperatures ranging from 0-60 degrees Celsius (32-140 degrees Fahrenheit) with a relative humidity ranging from 5-95% noncondensing.

Allen Bradley Main Products:

1. SLC500:1747/1746 series 2.MicroLogix: 1761/1763/1762/1766/1764 series 3.CompactLogix: 1769/1768 series 4. The ControlLogix: 1756/1794/1760/1788 series 5. PLC-5:1771/1785 series 6.2711,2711P PanelView man-machine interface, touch screen, operation panel 7.22A,22B, 20 small frequency converter,150 soft starter 8. ProSoft: MVI69 / PS69 / MVI56 / MVI94 / MVI71 / MVI46/3150 9. ICS TRIPLEX: T8431 / T8461 / T3401 / T8310

Our Advantage

*Please let us know if you have any spare parts, spare parts, we can give you further assistance, we await your inquiry.

FAQ: 1.Is the part new? Yes, 100% Original brand new 2.How is the package? Original factory seal packed 3.What is the lead time? In stock: 1-3 working days 4.What is the MOQ: 1pcs 5.What is the payment term: TT and Western Union, other negotiable 6.Where the item ship from? Xiamen 7.What is the warranty time? One year

8. How to delivery the PLC Parts? Kindly tell us your address,we check best cost for you Or you can use your own courier account or agent, DHL, FEDEX, UPS etc are available.
