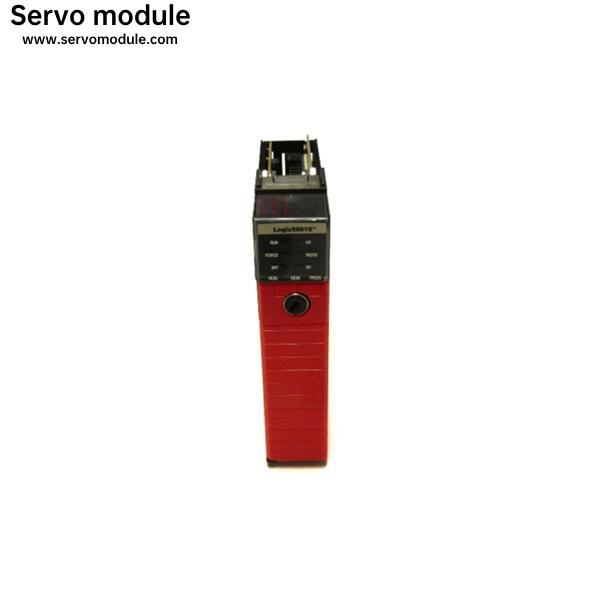

Allen Bradley 1756-L61 ControlLogix Logix5561 Processor 2MB Memory

Introduction

The 1756-L61 Series B module is an Allen-Bradley ControlLogix processor module that uses firmware revision 13.4 or later. This module can accommodate up to 128,000 I/O maximum, 4000 analog inputs, and 2000 analog outputs. The 1756-L61 Series B module’s fixed memory capacity can be 2, 4, or 8 MB of memory. The non-volatile memory capacity is the capacity of the compact flash card that is used, and that is 128 MB of the card is the Allen-Bradley 1784-CF128 compact flash card. There is also 478 KB of I/O memory available. The 1756-L61 Series B module is protected by an open enclosure. This module can communicate through the RS-232 serial port that it comes with. It can be backed up by the Allen-Bradley 1756-BA2 battery.

The Allen-Bradley 1756-L61 Series B ControlLogix processor module can be operated or stored safely in any suitable industrial environment that has a relative humidity range between 5 and 95% as long as the humidity is non-condensing. The backplane current ratings of this ControlLogix processor module are 1.2 Amps of current at 5 Volts DC and 14 milliamps of current at 24 Volts DC. This module can handle up to 32 tasks at a time and it can also handle up to 100 programs per task. It can only be installed on certain Allen-Bradley chassis that include several Allen-Bradley 1756-A chassis. The 1756-L61 Series B module dissipates about 3.5 Watts of power and about 11.9 BTU per hour of heat. It operates at an ambient temperature between 0 and 60 degrees Celsius.

Allen Bradley Main Products:

1. SLC500:1747/1746 series 2.MicroLogix: 1761/1763/1762/1766/1764 series 3.CompactLogix: 1769/1768 series 4. The ControlLogix: 1756/1794/1760/1788 series 5. PLC-5:1771/1785 series 6.2711,2711P PanelView man-machine interface, touch screen, operation panel 7.22A,22B, 20 small frequency converter,150 soft starter 8. ProSoft: MVI69 / PS69 / MVI56 / MVI94 / MVI71 / MVI46/3150 9. ICS TRIPLEX: T8431 / T8461 / T3401 / T8310

Our Advantage

FAQ: 1.Is the part new? Yes, 100% Original brand new 2.How is the package? Original factory seal packed 3.What is the lead time? In stock: 1-3 working days 4.What is the MOQ: 1pcs 5.What is the payment term: TT and Western Union, other negotiable 6.Where the item ship from? Xiamen 7.What is the warranty time? One year

8. How to delivery the PLC Parts? Kindly tell us your address,we check best cost for you Or you can use your own courier account or agent, DHL, FEDEX, UPS etc are available.
