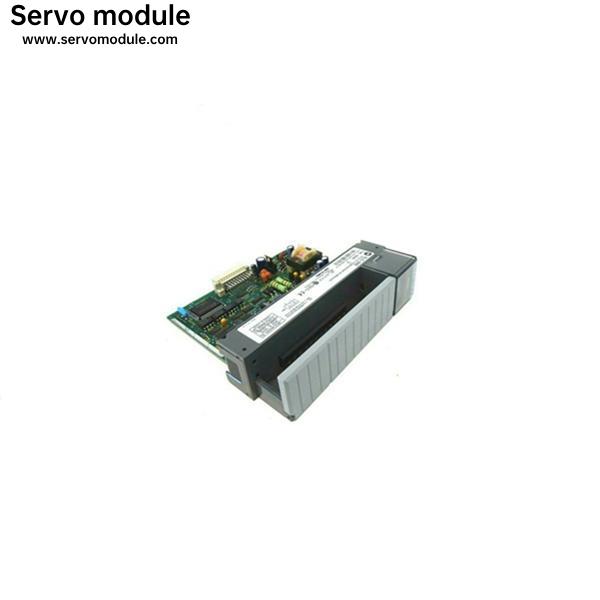

Allen Bradley 1746-NI16I 1746 SLC 500Analog I/O Modules
Overview:
ABB 1746 Analog I/O Modules is one of the1746 Analog I/O Modules. Analog I/O modules feature user-selectable voltage or current inputs, backplane isolation, removable terminal blocks, and diagnostic feedback. The 1746-NI4, 1746-NIO4I, and 1746-NIO4V input channels are filtered to reject high frequency noise and provide 14- to 16-bit (range-dependent) resolution. The 1746-NI8 module provides high accuracy and fast analog signal conversion. The 1746-NI8, 1746-NI16I and 1746-NI16V modules are high density analog input modules that are software configurable.
AB 1746-NI16I Analog I/O Module Specificiation:
| Catalog Number | Description | Voltage Category |
| 1746-NI4 | High Resolution (4) Analog Input Module | -20…+20 mA (or) -10…+10V DC |
| 1746-NI8 | High Resolution (8) Analog Input Module | -20…+20 mA (or) -10…+10V DC |
| 1746-NI16I | High Resolution (16) Analog Input Module | -20…+20 mA |
| 1746-NI16V | High Resolution (16) Analog Input Module | -10…+10V DC |
| 1746-NIO4I | High Resolution (2) Analog Input, (2) Analog Current Output Module | -20…+20 mA (or) -10…+10V DC (inputs) 0…20 mA (outputs) |
| 1746-NIO4V | High Resolution (2) Analog Input, (2) Analog Voltage Output Module | 20…+20 mA (or) -10…+10V DC (inputs) -10…+10V DC (outputs) |
| 1746-FIO4I | (2) Fast Analog Input, (2) Analog Current Output Module | 0…20 mA (or) 0…10V DC (inputs) 0…20 mA (outputs) |
| 1746-FIO4V | (2) Fast Analog Input, (2) Analog Voltage Output Module | 0…20 mA |
| 1746-NIO4I | (4) Analog Current Output Module | -10…+10V DC |
| 1746-NIO4V | (4) Analog Voltage Output Module | 0…20 mA |
| 1746-NO8I | (8) Analog Current Output Module | -10…+10V DC |
| 1746-NO8V | (8) Analog Voltage Output Module | -10…+10V DC |
