Rockwell Allen-Bradley Analog Output Module 1756-OF4/AModule
About1756-OF4:

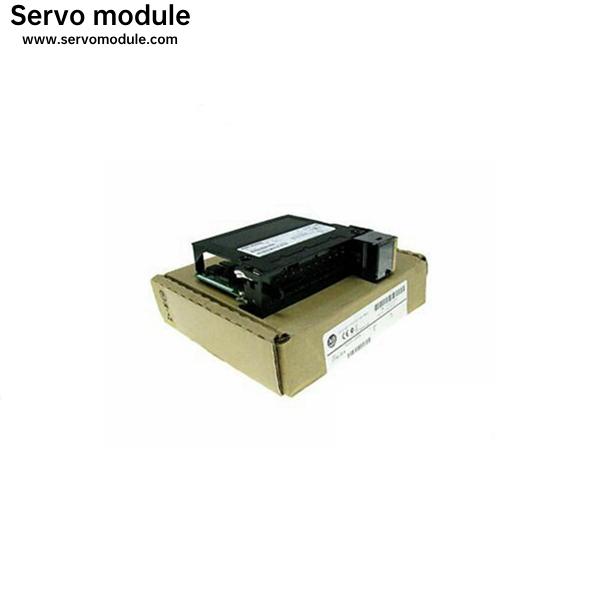

The Allen-Bradley 1756-OF4 module is a ControlLogix non-isolated output module.
1756-OF4has 4 voltage or current outputs available with a current resolution of 15 bits across 21 mA, 650 nA/bit for a voltage resolution of 16 bits across 10.5V, 320 µV/bit. It requires a 20 pin RTB, or Removable Terminal Block housing for connection to field devices. The compatible RTBs are the 1756-TBSH and the 1756-TBNH. It is important to ensure that the chassis and power supply have already been installed and grounded prior to installing the module to it with the RTB.
Technical Specifications ForAllen Bradley1756-OF4:
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number/Catalog No. | 1756-OF4 |
| Output Voltage Range | ±10V |
| Output Current Range | 4…20 mA |
| Output Voltage Resolution | 15 bits across 10.5V, 320 µV/bit O |
| Output Current Resolution | 15 bits across 21 mA, 650 nA/bit |
| Backplane Current (5Volts) | 150 milliamps |
| Backplane Current (24 Volts) | 120 milliamps |
| Power Dissipation (Max) | 4.9 Watts at 60 Celsius |
