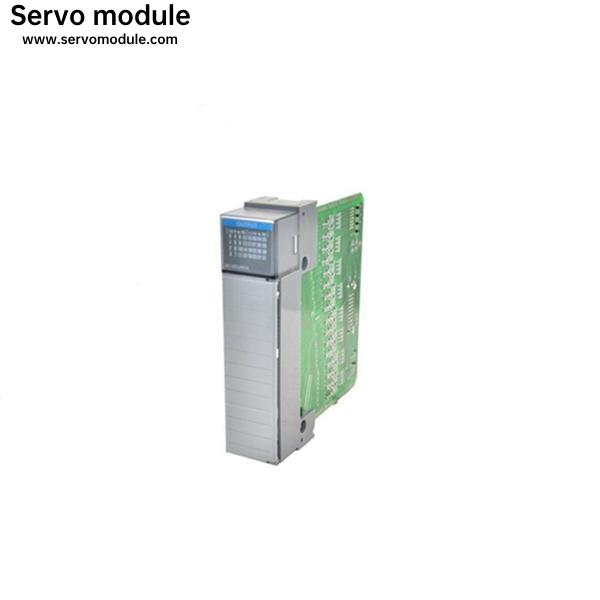

Allen Bradley 1746-OB16 Sourcing DC Output ModulesSLC 500 System
Overview:
Allen Bradley 1746-OB16 is one of the 1746Output modules .
Digital I/O Output modules are available with solid-state AC, solid-state DC, and relay contact type outputs. High current solid-state output modules, catalog numbers 1746-OBP16, 1746-OVP16, and 1746-OAP12, have fused commons with a blown fuse LED indication. The 1746-OB16E, 1746-OB6EI, and 1746-OB32E modules provide electronic protection from short circuit and overload conditions. Wiring of 16 and 32-channel modules can also be accomplished with a bulletin 1492interface module and pre-wired cable. All 16-channel I/O modules and catalog numbers1746-OX8, 1746-OBP8, 1746-OAP12, 1746-IO12 are equipped with color-codedremovable terminal blocks
Allen Bradley 1746-OB16Specificiation:
| Catalog Number | Voltage Category | I/O Points | Description |
| 1746-OB16 | 24V DC | 16 | Current Sourcing DC Output Module |
| 1746-IB32 | 24V DC | 32 | Current Sinking DC Input Module |
| 1746-IB16 | 24V DC | 16 | Current Sinking DC Input Module |
| 1746-IB8 | 24V DC | 8 | Current Sinking DC Input Module |
| 1746-ITB16 | 24V DC | 16 | Fast Response DC Sinking Input Module |
| 1746-IC16 | 48V DC | 16 | Current Sinking DC Input Module |
| 1746-IH16 | 125V DC | 16 | Current Sinking DC Input Module |
| 1746-OB6EI | 24V DC | 6 | Electronically Protected Isolated Sourcing DC Output Module |
| 1746-OB8 | 24V DC | 8 | Current Sourcing DC Output Module |
| 1746-OB16E | 24V DC | 16 | Electronically Protected Current Sourcing DC Output Module |
| 1746-OB32 | 24V DC | 32 | Current Sourcing DC Output Module |
| 1746-OB32E | 24V DC | 32 | Electronically Protected Current Sourcing DC Output Module |
| 1746-OBP8 | 24V DC | 8 | High Current Sourcing DC Output Module |
| 1746-OBP16 | 24V DC | 16 | High Current Sourcing DC Output Module |
