ALLEN BRADLEY 1785-KA SERISE A MODULE NEW IN BOX
1785-KAProfile :

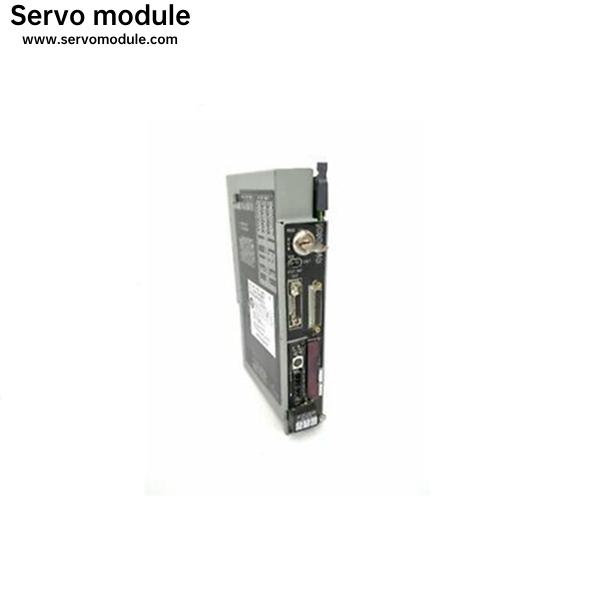

The 1785-KA PLC 5 Data Highway/Data Highway Plus Communication Adapter Module by Allen Bradley is an adapter module which connects PLC 5 controllers on the Data Highway Plus network with redistribution points (nodes) on the Allen Bradley Data Highway. The 1785-KA is fitted on a single slot of the 1771 I/O chassis and requires a backplane current of 1.5 A at 5 Volts DC from the chassis supplied power source. It connects to the Data Highway through the 15-pin male EIA D-shell connector communication port on the side, and to the Data Highway Plus via the 3-screw terminal block using the Data Highway and Data Highway Plus connector cables. It can also connect to the 1784-T50 Terminal through the 9-pin male EIA D-shell connector.
Allen Bradley 1785-KATechnical Specifications:
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number/Catalog No. | 1785-KA |
| Required Backplane | 1.4 Amperes at 5 Volts DC |
| Operation | Process Messages |
| Communication w/ PLC Processor | Direct Connection to Channel 3 of PLC-5 Processor |
| LEDs | 1 Diagnosis/Status Per Channel |
| Max Modules Per System | 4 |
| Weight | 0.3 lbs (0.1 kg) |
| Dimensions | 4.5 x 12.4 x 6.3 in (115 x 317 x 160 mm) |
