Allen-Bradley 1771-P6R C Power Supply Redundant 8A 220V AC 1756p6r
1771-P6R C Profile :
The Allen-Bradley 1771-P6R has an input voltage rating of 220V AC, 50-60Hz, and 0.5A and it is a part of 1771 Redundant Power Supplies.
It has an input voltage range between 194 and 240V AC, a backplane current of 300mA at 5V DC ±5%, and an output voltage of 5V DC, 8A. This can be installed into any module slot in any current I/O chassis (1771-A1B, -A2B, -A3B, -A3B1, -A4B, -PSC). Allocate 2 to 4 adjacent slots in the chassis when using redundant power supplies.

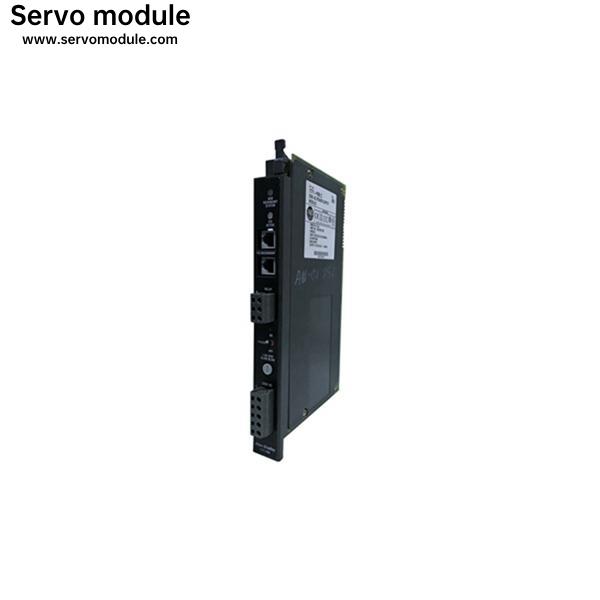

The 1771-P6R Power Supply Module ships with one redundant cable, and two terminal blocks attached to the module –one 3-position and one 5-position. It has two indicators on the front panel. The top yellow indicator with the NO- REDUNDANT label tells if the number of operating supplies does not meet the required number for a redundant operation. The lower green labeled P/S ACTIVE detects if the module is working normally or if there is any operating problem.
Allen Bradley 1771-P6R C Technical Specifications:
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number/Catalog No. | 1771-P6R |
| Nom Input Voltage | 220 Volts AC |
| Input Voltage Range | 194-264 Volts AC |
| Max Real Input Power | 59 Watts |
| Max Apparent Input Power | 92 VA |
| Max Xformer Load | 148 VA |
| User Output Current | N/A |
| Backplane Output Current | 8 Amperes (at 5 Volts DC) |
| Frequency | 47-63 Hertz |
| Fuse | 1.5 Amperes, 250 Volts, slow-blow |
