Prosoft MVI69-GSC PLC Generic ASCII Serial Communication Module in Stock
Overview

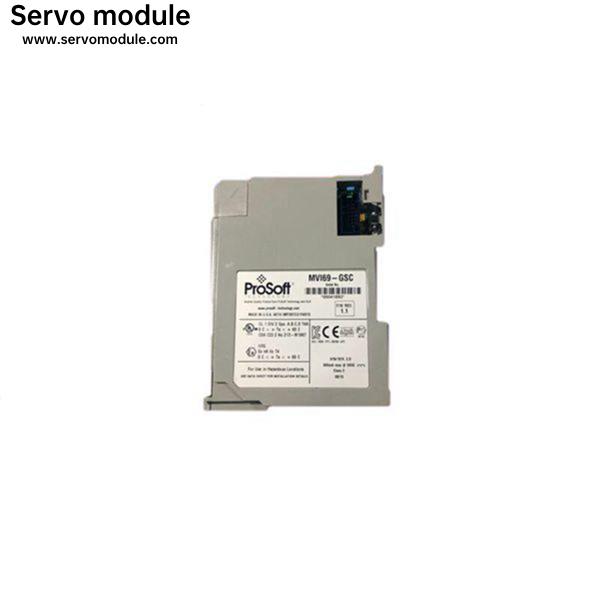

The MVI69-GSC Generic ASCII Serial Interface Module is a fast and easy way to add two fully configurable ASCII communication ports to the CompactLogix / MicroLogix platform without consuming the front port of the processor, or using valuable processing time. The MVI69-GSC module is a single-slot, backplane-compatible solution for the CompactLogix / MicroLogix platform. This module has two powerful and fully configurable ASCII communication ports, each supporting the sending and receiving of large ASCII character strings. With the implementation of some supporting ladder logic in the processor, the many different devices supporting ASCII communications can be integrated into the CompactLogix / MicroLogix platform.
Features
Single-slot - 1769 backplane compatible
The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module
Ladder Logic is used for data transfer between module memory and processor controller tags. A sample ladder file with AOI is included
Configuration data obtained from configuration text file downloaded to module. A sample configuration file is included
Supports CompactLogix and MicroLogix 1500 LRP Controllers except 1769-QBFC1B, 1769-L16x, and 1769-L18x
Hardware Specifications
| Specification | Description |
| Product ID | MVI69-GSC |
| Dimensions | Standard 1769 single-slot module |
| Current Load | 800 mA max @ 5 VDC Power supply distance rating of 2 (L43 and L45 installations on first 2 slots of 1769 bus) |
| Operating Temp. | 32°F to 140°F (0°C to 60°C) |
| Relative Humidity | 5% to 95% (with no condensation) |
| CFG Port (CFG) | RJ45 (DB-9F with supplied cable), RS-232 only, No hardware handshaking |
| Shipped with Unit | RJ45 to DB-9M cables for each port 6-foot RS-232 configuration cable |
