AllenBradley A-B New In Box1756-OB16EElectronic Fused DC Output Module
About1756-OB16E:

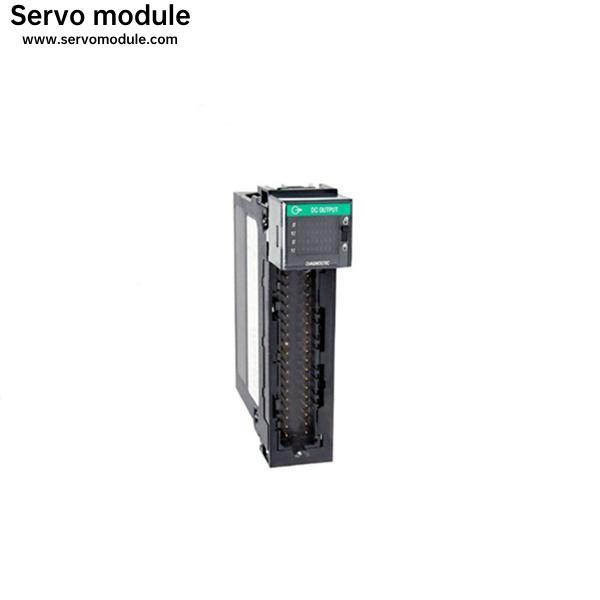

The Allen-Bradley 1756-OB16E module is a ControlLogix DC digital output module.
1756-OB16Ehas been fused electronically by group and it has 16 outputs total with 8 points per group. A Removable Terminal Block housing, or RTB housing, is necessary before installing it to a compatible ControlLogix chassis. For this module, the can use the Allen-Bradley 1756-TBNH RTB or the Allen-Bradley 1756-TBSH RTB, which both have 20 pins. Note that it is necessary that the chassis and the power supply be installed and grounded before installing this module with the RTB. By using the RSLogix 5000 programming software, it is possible to configure the 1756-OB16E module's transition from the program state to fault state, the output state in fault mode, or the output state in program mode. Other features of this module are multiple output point densities, configurable point-level output states, isolated and non-isolated varieties of output modules, and the output data echo feature.
Allen Bradley1756-OB16ETechnical Specifications:
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number/Catalog No. | 1756-OB16E |
| Outputs | 16-Point Electronically Fused |
| Voltage | 12-24 Volts DC |
| Operating Voltage Range | 10-30 Volts DC |
| Maximum Output Current Rating-Point | 1 Amp at 60 Celsius |
| Maximum Output Current Rating-Module | 8 Amps at 60 degrees Celsius |
| Power Dissipation (Max) | 4.1 Watts at 60 degree Celsius |
| Backplane Current at 5 Volts | 250 milliamps |
| Isolation Voltage | 50 Volts Continuous |
