Original New Allen Bradley 1747-L532 SLC500 5/03 PLC Processor CPU
About1747-L532:

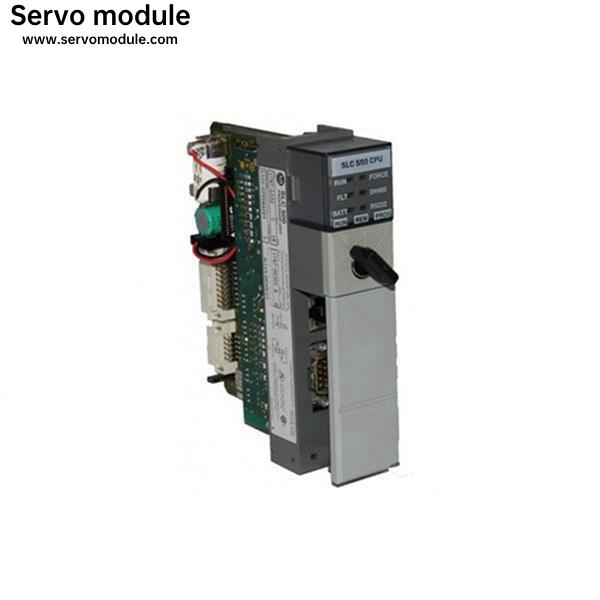

The 1747-L532 is an SLC 5/03 controller module for the SLC 500 Modular Hardware by Allen-Bradley.
The Allen-Bradley 1747-L532is a small, simple, and pocket-sized processor with a wide range of applications such as small process control, material handling, and HVAC control. It contains a PLC-5 processor-based advanced instruction set. It can be stand-alone or distributed throughout a system for SCADA applications. The 1747-L532 processor has a total user memory of 16K words with 12K words for data/program and 4K words for data alone. It has up to 4096 inputs, 4096 outputs, and 480 local analog I/Os. It has a program scan time per keyword of 1 millisecond. The 1747-L532 has a backplane current of 500 mA at 5 Volts DC and of 175 mA at 24 Volts DC. It has a maximum of 2 local I/O chassis with a maximum of 30 module I/O slots in a local I/O chassis.
Allen Bradley1747-L532Technical Specifications:
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number/Catalog No. | 1747-L532 |
| Inputs | 4096 |
| Module Type | SLC 5/03 Processor |
| Outputs | 4096 |
| Programming software: | RSLogix500 software |
| User Memory | 16,000 Words |
| I/O Chassis | 3 |
| Chassis Module Slots | 30 |
| I/O Scan Time | 0.225 milliseconds |
