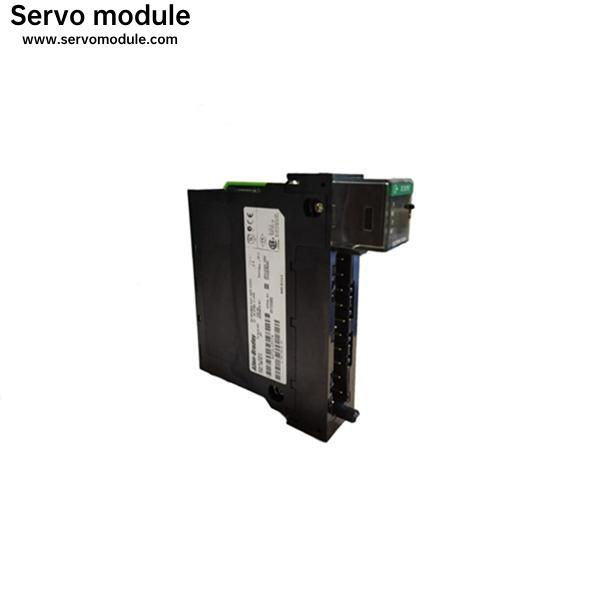

In Stock New And Original A-B 1756-IF16 ControlLogix 16Pt Input Module 1756-1F16

About1756-IF16:

The Allen-Bradley 1756-IF16 is a non-isolated analog current/voltage I/O module. In order to connect to a ControlLogix chassis, it requires an RTB, or a removable terminal block housing, of either the 1756-TBS6H or 1756-TBCH. This input module has 16 points available. These points allow users to wire the module in different ways, unlike other modules. The 1756-IF16 can be wired using three different methods, depending on the user's and application's requirements: single-ended wiring, differential wiring, and high-speed mode differential wiring. The single-ended wiring method is best when all input devices are tied to a common ground. This is for comparing one side of the signal input to signal ground to get the difference, which is then used by the module in generating digital data for the controller. 16 single-ended wirings can be done. When applications do not have a common ground or can have separate signal pairs, using the differential wiring method is recommended. This wiring method is also for environments where an improved noise immunity is needed. The channels in a differential mode are not completely isolated from each other.

Technical Specifications ForAllen Bradley1756-IF16:

FAQ For 1756-IF16:

1.What is this module’s power dissipation?

The 1756-IF16 has a power dissipation of around 2.3 Watts.

The 1756-IF16 has 16 single, 8 differential, and 4 highspeed differential inputs.
