NEW Allen Bradley 1794-OE12 Analog Output Module 1794OE12 FAST SHIPPING
1794-OE12CM Profile :

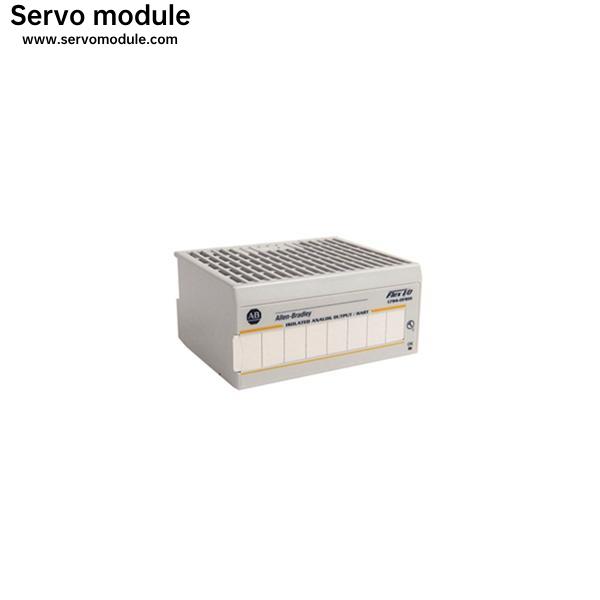

TheAllen-Bradley 1794-OE12is a Flex I/O analog module.
The1794-OE12module's data format is leftjustified and 16-bit 2's complement. This module comes with a green/red power/status on-indicator and a #4 keyswitch position indicator. Terminal base units compatible with this module are the 1794-TB3G, 1794-TB3GS, 1794-TB3GK, and the 1794-TB3GKS units.
Allen Bradley 1794-OE12 Technical Specifications:
| Brand | Allen-Bradley |
| Manufacturer | Rockwell Automation |
| Part Number/Catalog No. | 1794-OE12 |
| Outputs | 12 Single-ended |
| Output Voltage Range | +/-10V |
| Output Current | 0-20mA max. |
| Voltage Output Current Load | 3mA max. |
| Current Resolution | 0.641 ?A/cnt |
| Resistive Load, mA Output | 0750 ? @ 24V DC |
| Flexbus Current | 80mA |
| Power Dissipation | 4.0W @ 31.2V DC |
| Thermal Dissipation | 4.7 BTU/hr. @ 24V DC |
