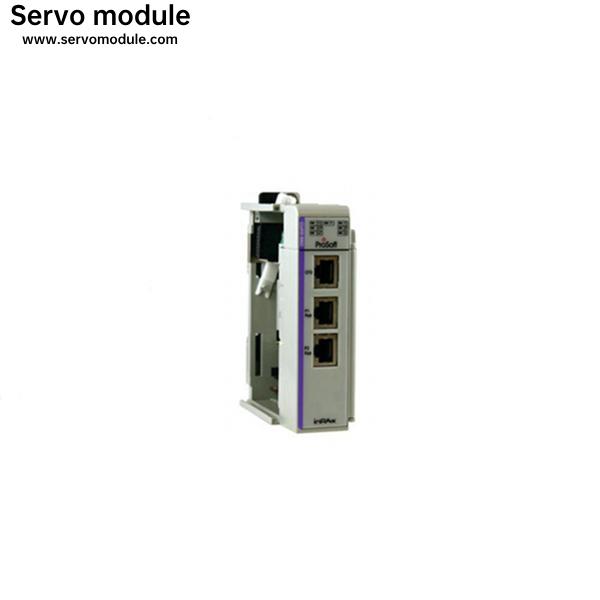

Prosoft MVI69-PDPSDP Slave Communication Module forCompactLogix or MicroLogix Platform Profibus

Prosoft MVI69-PDPSGeneral Specifications

Single Slot - 1769 backplane compatible

The module is recognized as an Input/Output module and has access to processor memory for data transfer between processor and module

Ladder Logic is used for data transfer between module and processor. Sample ladder file included.

Configuration data obtained from configuration text file downloaded to module. Sample configuration file included.

Supports all CompactLogix processors: 1769-L20,1769-L23,1769-L30,1769-L31,1769-L32,1769-L35,1769-L43 and1768-L20,1768-L23,1768-L30,1768-L31,1768-L32,1768-L35,1768-L43and1768-L45 (L43 and L45 supported with RSLogix 5000 v16.03 or later)

Also supports MicroLogix 1500 LRP

System Requirements

The MVI69-PDPS module requires the following minimum hardware and software components:

1.Rockwell Automation CompactLogix or MicroLogix processor, with compatible power supply and one free slot in the rack, for the MVI69-PDPS module. The module requires 800mA of available power.

2.Rockwell Automation RSLogix 5000 (CompactLogix) or RSLogix 500 (MicroLogix) programming software ƒ Rockwell Automation RSLinx communication software

3.Rockwell Automation RSLogix 5000 (CompactLogix) or RSLogix 500 (MicroLogix) programming software ƒ Rockwell Automation RSLinx communication software

Important Notice

1.The MVI69-PDPS module has a power supply distance rating of 2 (L43 and L45 installations on first 2 slots of 1769 bus).

For 1769-L23x processors, please make note of the following limitations.

2.1769-L23-QBFC1B = 800mA at 5Vdc (1 MVI69-PDPS will use all 800mA of available power. No other modules can be used with an MVI69 module connected to this processor).

3.1769-L23E-QB1B = 1000mA at 5Vdc (1 MVI69-PDPS will use 800mA of available power. One other module can be used on this rack provided it consumes less than 200mA at 5Vdc.

1769-L23E-QBFC1B = 450mA at 5Vdc (no MVI69 module can be used with this processor)
