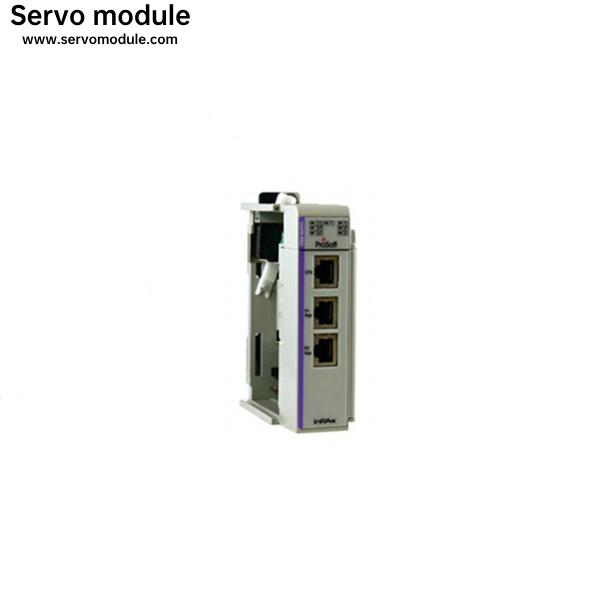

Rockwell Automation Prosoft MVI69L-MBS Modbus Serial Lite Communication Module
Introduction
The MVI69L-MBS, Modbus Serial module for the CompactLogix™ series of controllers is designed for smaller applications where communication between a few Modbus Serial devices is required. This module has an Add-on Profile and an Add-on Instruction to reduce commissioning time. The MVI69L-MBS has a single serial port and can support either Master or Slave connectivity to interface with a variety of devices using the Modbus Protocol.
Features
Supports CompactLogix processors with 1769 I/O bus capability version 16 and greater (MicroLogix 1500 not supported)
Add-on Instruction creates UDTs, providing logical definitions for I/O, status, and control data
Add-on Profile support, improving integration in the CompactLogix System
Diagnostic data available in processor controller tags, enabling decisions to be made based upon node health
Module configuration backed up in CompactLogix project (ACD file)
Module acts as a co-processor reducing impact to PLC scan time
Supports up to 240 words of I/O data
Application port can be configured as either a Modbus Master or Modbus Slave
Supports up to 30 Modbus Commands as a Modbus Master
Supports Enron and Daniel style Floating point data implementations
Most suitable for OEM and Machine Builder applications
General Specifications
| Product ID | MVI69L-MBS |
| Configuration | ProSoft Configuration Builder |
| I/O Size | 240/240 - 16 bit integers |
| Communication parameters | Baud Rate: 110 to 115K baud, Stop Bits: 1 or 2, Data Size: 7 or 8 bits Parity: None, Even, Odd, RTS Timing delays: 0 to 65535 milliseconds |
| Modbus Modes | RTU mode (binary) with CRC-16, ASCII mode with LRC error checking |
| Floating Point Data | Floating point data movement supported, including configurable support for Enron, Daniel®, and other implementations |
| Hardware Dimensions | Standard 1769 Single-slot module |
| Shipped with Unit | 1 - RJ45 to DB-9M cables for application port, 1 - DB-9F breakout boards |
