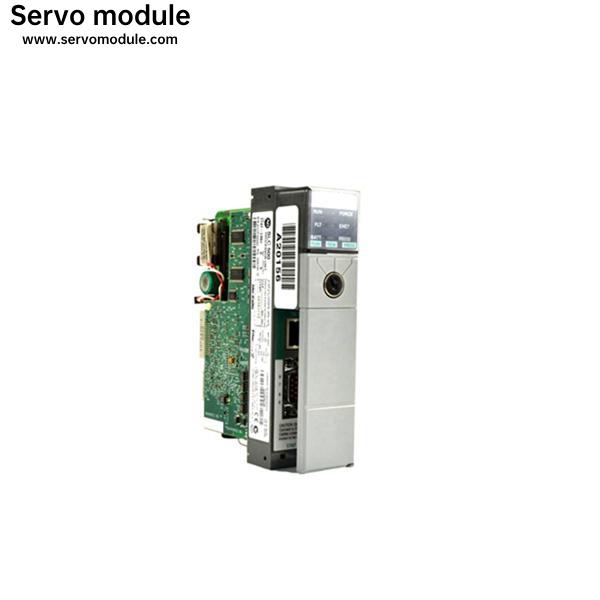

Rockwell Allen Bradley 1747-L551 SLC 500 Module

About 1747-L551

The Allen-Bradley 1747-L551 Processor Hardware is integrated with a program memory size of 16 KB. It is high-performance controller, capable of controlling up to 4096 input and output points. This module supports online and offline programming such as runtime editing. The Allen-Bradley 1747-L551 has channel-to-channel, remote I/O, and DeviceNet pass-thru features. This module also has a built-in real-time clock and calendar. This module comes with a Ethernet port for network connection and RS232 port for peer-to-peer communication. The RS-232 channel supports DF1 full duplex, DF1 half-duplex master and a DF1 radio modem. The integrated Ethernet port supports a built-in 10/100 Base-T Ethernet channel for supporting SNMP, BOOTP, extended messaging capabilities, and high-speed communication. For programming, it includes advanced math instructions and various additional instructions. It also includes support for indirect addressing. The SLC 505 has a typical Program Scan Time per Keyword of 0.9 milliseconds and typical I/O scan time of 0.225 milliseconds.

SLC 500 System Overview

The Allen-Bradley SLC 500 is a small chassis-based family of programmable controllers, discrete, analog, and specialty I/O, and peripheral devices. The SLC 500 family delivers power and flexibility with a wide range of communication configurations, features, and memory options. The RSLogix 500 ladder logic programming package provides flexible editors, point-and-click I/O configuration, and a powerful database editor, as well as diagnostic and troubleshooting tools to help you save project development time and maximize productivity.
