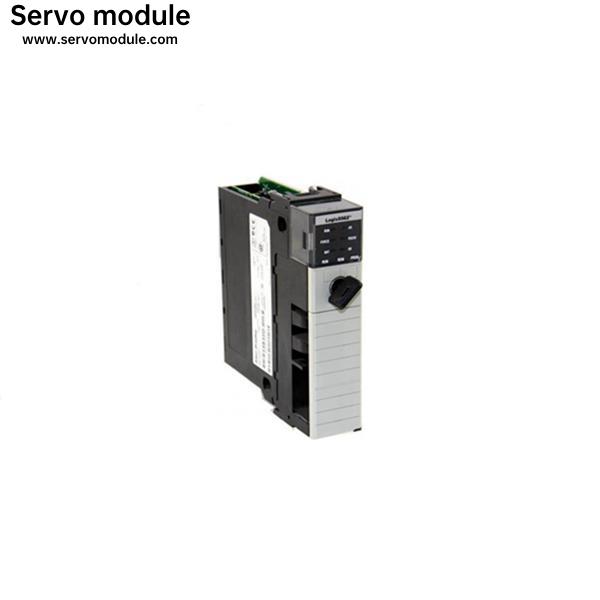

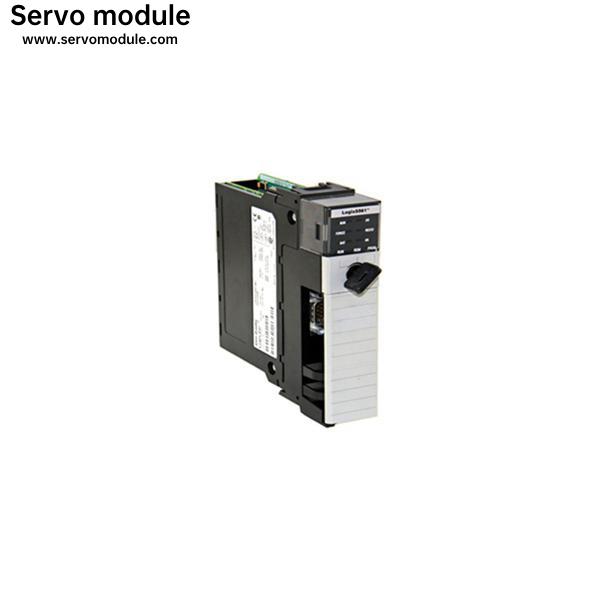

Rockwell Allen Bradley 1756-L63 Logix5563 CPU Module

About 1756-L63

The 1756-L63 controller has a built-in RS-132 serial communication port. The communication options available for this controller include the DeviceNet, ControlNet, EtherNet/IP, SynchLink, Remote I/O, Data Highway Plus, and third-party process and device networks. Serial port communications modules that this controller supports are the Modbus via logic, DH-485, DF1 radio modem, ASCII, and the DF1 full/half-duplex modules. The continuous isolation voltage of the 1756-L63 controller is 30 Volts and it has a basic insulation type. It has also been type-tested at 720 Volts DC for 60 seconds. It has a power dissipation of 3.5 W and a thermal dissipation of 11.9 BTU/hour. Its current draw at 5.1 Volts DC is 1200 mA and its current draw at 24 Volts DC is 14 mA. It has a vibration of 2 g at 10 to 500 Hertz. The 1756-L63 controller has an operating shock of 30 g and a non-operating shock of 50 g. It also has an operating temperature range of 0 to 60 degrees Celsius and a non-operating temperature range of -40 to 85 degrees Celsius. It also has a maximum surrounding air temperature of 60 degrees Celsius.
