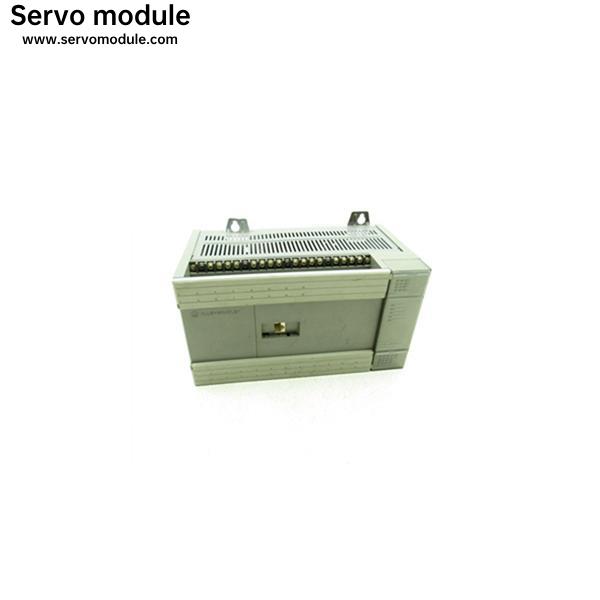

Rockwell Allen Bradley 1747-L30C SLC 500 Module

About 1747-L30C

The 1747-L30C is an Allen-Bradley fixed style controller. This controller is ideal for use in small scale applications. It has integrated IOs such as (18) 24 Volts DC Sinking, High-Speed inputs and (12) AC/DC Relay.

The 1747-L30C is an Allen-Bradley PLC SLC 500 Series Fixed Hardware Controller. This fixed controller has a processor with a power supply and a fixed number of I/O within a single package. With capacitor-backed RAM as its memory type, the 1747-L30C offers optional battery back-up and EEPROM and UVPROM memory backup options. It has a 1K instruction capacity of program memory and a nominal input current of 12mA. The 1747-L30C possesses an I/O configuration input of (18) 24V DC sink and an I/O configuration output of (12) AC/DC Relay. The 1747-L30C operates under 21.6-26.4V DC or 24V DC +/-10% power supply input. This controller communicates via DH-485 protocol.

SLC 500 System Overview

The Allen-Bradley SLC 500 is a small chassis-based family of programmable controllers, discrete, analog, and specialty I/O, and peripheral devices. The SLC 500 family delivers power and flexibility with a wide range of communication configurations, features, and memory options. The RSLogix 500 ladder logic programming package provides flexible editors, point-and-click I/O configuration, and a powerful database editor, as well as diagnostic and troubleshooting tools to help you save project development time and maximize productivity.
