1747-L514 SLC 500 Allen-Bradley

About1747-L514

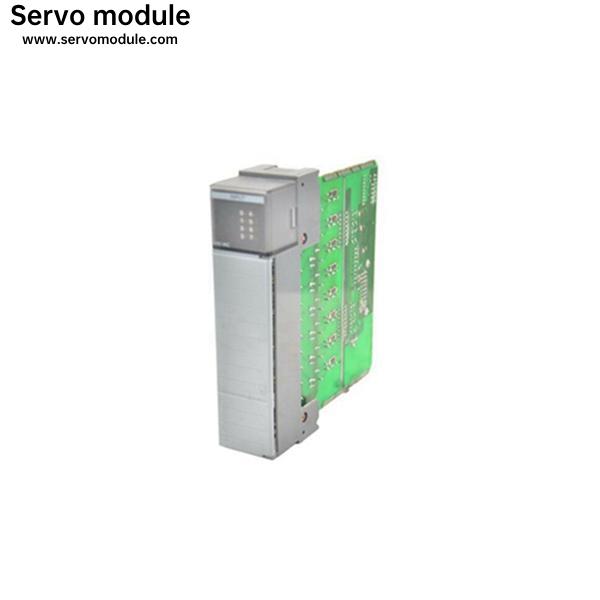

The 1747-L514 SLC 5/01 Modular Processor by Allen-Bradley is a modular processor of the SLC 500 system which offers 4K of processor memory, a maximum configuration capacity of 3 Chassis with a total of 30 slots, and an I/O connection capacity range from 4-3940 I/O points. The module has a backplane current of 90mA at 5.0V DC which gets to 0mA at 24V DC and it uses the 1747-BA lithium battery assembly with a 30-minute capacitor life and a lithium battery with a 2-year lifespan for backup power for the standard RAM. The 1747-L514 offers optional EEPROM backup, and with a 4K memory, it can process a maximum of 52 programming instructions, using the RSLogix 500 programming software.

The 1747-L514 has a maximum bit execution time of 4μs and an overall module scan time of 8ms/K. During a temporary power loss, the program scan on the module can take from 20ms to 3s depending on the power supply that is loading. It comes with a base DH-485 communication capability which can only act in a slave capacity (Receiving) in the programming channel. The 1747-L514 has an ambient operating temperature range of 0-60°C (32-140°F) at 5-95% non-condensing relative humidity range, and it is designed to sustain an operational shock of 30G, and a vibration of 2.5G at 57-2000Hz. The 1747-L514 is C-UL, UL, and CE-certified, and it offers a NEMA standard ICS 2-230 industrial noise immunity.
