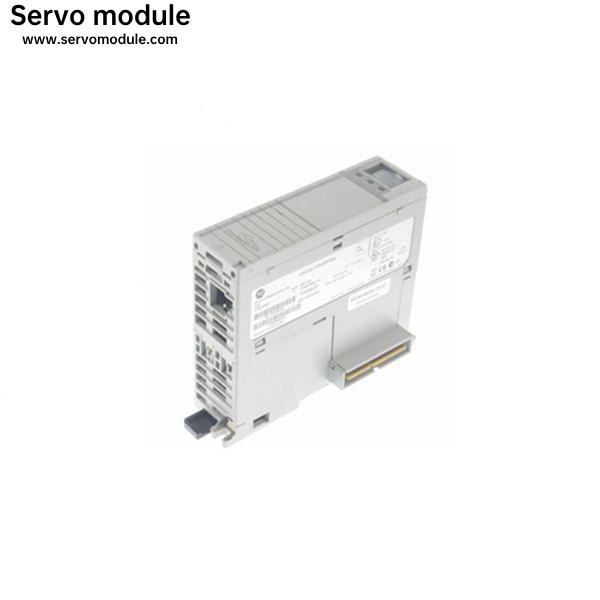

Allen Bradley 1762-OB32T MicroLogix Digital Output Guaranteed

Description

The Allen-Bradley 1762-0B32T is a solid-state 24 Volts DC source output module with 32 outputs. The shipping weight of this module is 7.05 ounces. and its heat dissipation is 3.4 W at 26.4 Volts DC. The enclosure of the 1762-0B32T is an IP20. There are three wire sizes suitable for this module. Those are 22, 24, and 26 AWG solid or stranded copper wire rated at 194 degrees Fahrenheit. The range of operating voltage is between 10.2 and 26.4 Volts DC. The continuous current per point, common, and module are all different. At 60 degrees Celsius, those continuous currents are 0.5 Amps, 2 Amps, and 4 Amps. The maximum surge current of the 1762-0B32T is 2.0 Amps (repeatable every 2 s at 60 degrees Celsius (140 degrees Fahrenheit) for 10 milliseconds).

The1762-0B32Tis designed to be used in a Pollution Degree 2 industrial environment at altitudes as high as 6562feet without derating. The1762-0B32Tmust be mounted in an enclosure designed to prevent injury. The enclosure must have flame-retardant properties to minimize the spread of fire, complying with a flamespread rating of 5VA, V2, V1, V0 (or equivalent) if non-metallic.The interior of the 1762-0B32T’s enclosure is accessible only by a tool.
