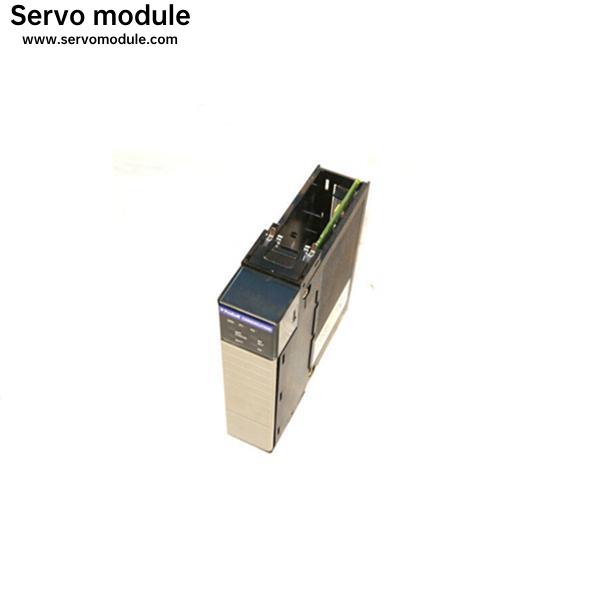

New Allen Bradley 1769-OF2 CompactLogix 2-Ch Analog Current/Voltage

Description

The 1769-OF2 compact voltage/current output module is an output module by Allen-Bradley with 2 single-ended output modules. It has a full voltage range of 0 to 10.5 Volts with an output of 0 to 10 Volts. It is a 14-bit unipolar/bipolar resolution output module with a draw current of 120 mA at 5.1 Volts. The 1769-OF2 current output module has a Delta/Sigma converter type and a 2.63 Watt heat. It has a 2.5-millisecond conversion rate on all channels and a 63% step response at 2.93 milliseconds. The 1769-OF2 has a current load of 10 mA and a restive load on-current output of 0 to500Ω (inclusive of wire resistance). It has a load-on voltage output range greater 1 kΩ at 10 Volts DC and an inductive load per current output of 0.1 mH.

The 1769-OF2 has a capacitive load per output voltage of 1 μF. It requires no field calibration and an accuracy margin of ±0.5% (Voltage full range at 25 degrees Celsius or 77 degrees Fahrenheit), and a ±0.35% (Current full range at 25degrees Celsius (77 degrees Fahrenheit)). The 1769-OF2 compact voltage/current output module has a module error boundary around 0.8%, and an accuracy drift of ±0.0086% per degreeCelsius. The output module also has a repeatability and nonlinearity margin of ±0.05%, and an output impedance of 15 Ω. The 1769-OF2 has a ±0.05% offset error margin and a 10ms time to detect an open wire condition. It equipped with short-circuit (21 mA maximum) and over-voltage protection. It has a copper wire with a 22 by 14 AWG solid size and single slot width. The 1769-OF2 has a weight of 0.65 pounds and dimensions of 4.65 by 1.38 by 3.43 inches.

Allen Bradley Main Products:

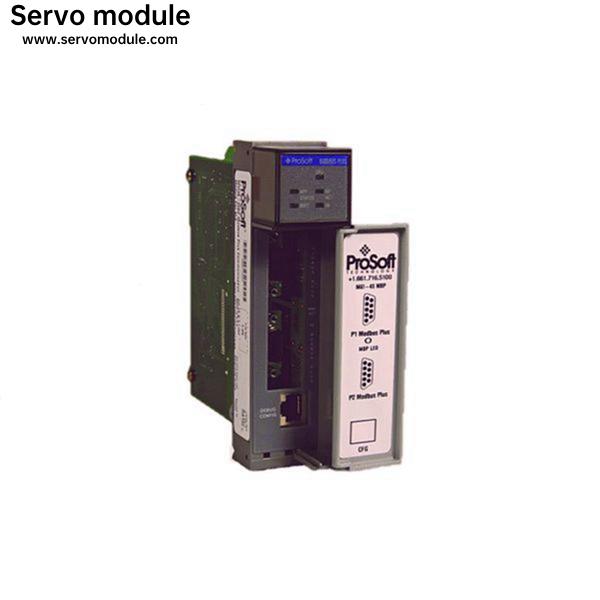

1. SLC500:1747/1746 series 2.MicroLogix: 1761/1763/1762/1766/1764 series 3.CompactLogix: 1769/1768 series 4. The ControlLogix: 1756/1794/1760/1788 series 5. PLC-5:1771/1785 series 6.2711,2711P PanelView man-machine interface, touch screen, operation panel 7.22A,22B, 20 small frequency converter,150 soft starter 8. ProSoft: MVI69 / PS69 / MVI56 / MVI94 / MVI71 / MVI46/3150 9. ICS TRIPLEX: T8431 / T8461 / T3401 / T8310
