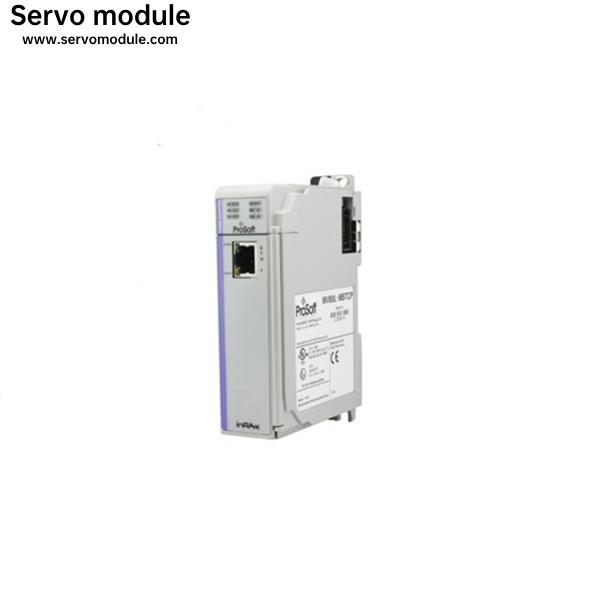

ProSoft MVI46-MCMPLC Module In Stock

Introduction

The MVI46, MVI56, MVI56E, MVI69, and MVI71 modules use a rechargeable Lithium Vanadium Pentoxide battery to backup the real-time clock and CMOS. The battery should last for the life of the module. The module must be powered for approximately twenty hours before the battery becomes fully charged. After it is fully charged, the battery provides backup power for the CMOS setup and the real-time clock for approximately 21 days. When the battery is fully discharged, the module will revert to the default BIOS and clock settings.

The MVI46-MCM module requires the following minimum hardware and software components:

1.Rockwell Automation SLC 5/02 M0/M1 capable processors (or newer), with compatible power supply and one free slot in the rack, for the MVI46-MCM module. The module requires 800mA of available power.

2.Rockwell Automation RSLogix 500 programming software.

3.Rockwell Automation RSLinx communication software

4.Pentium® II 500 MHz minimum. Pentium III 733 MHz (or better) recommended

5.Supported operating systems:

o Microsoft® Windows 98

o Windows NT® (version 4 with SP4 or higher)

o Windows 2000

o Windows XP

6. 32 Mbytes of RAM minimum, 64 Mbytes of RAM recommended

7.50 Mbytes of free hard disk space (or more based on application requirements)

8.16-color VGA graphics adapter, 640 x 480 minimum resolution (256 Color 800

9.600 recommended)

10.CD-ROM drive

11.3.5 inch floppy disk drive

12.HyperTerminal or other terminal emulator program capable of file transfers using Ymodem protocol.
